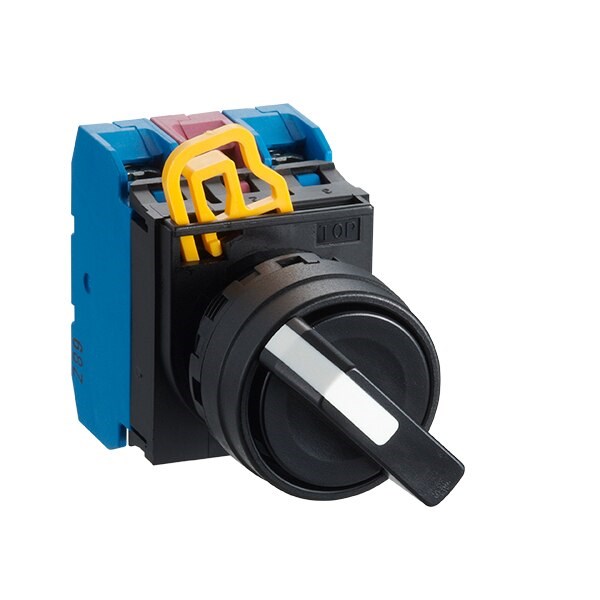

IDEC YW1S-3E30 Selector Switch 3Position 3NO+1NC Left Center Right Maintained Round Plastic 30mm W

Product Code: YW1S-3E30

  • Selector switch with 3NO+1NC contacts
  • Operates at 10A, 600V insulation voltage
  • IP20/IP65 protection for durability
  • Fits standard 22mm mounting holes
  • Maintained function with round plastic bezel
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 3NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left, Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-3E30 Selector Switch is a compact and efficient solution for control operations, featuring a 3-position maintained mechanism with three normally open (3NO) contacts. Its space-saving design includes 10mm thick contact blocks and a removable operator for straightforward handling. The lightweight construction and separate contact block facilitate easy installation and removal, making it an ideal choice for streamlined assembly in various applications.
