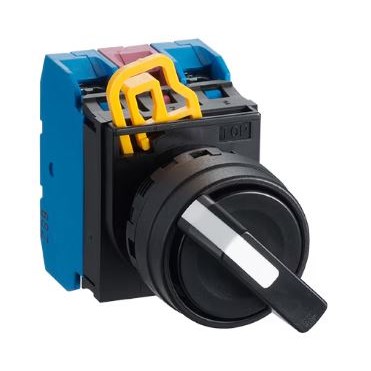

IDEC YW1S-33E40 Selector Switch 3Position 4NO Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1S-33E40

  • Selector switch with 10 A current rating
  • Operates at 50/60 Hz frequency
  • IP20/IP65 protection for durability
  • Two-way spring return operation
  • Fits 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 4
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 4NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Two-Way Spring Return
Model Spring Return Two-Way
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-33E40 Selector Switch is a compact, space-efficient solution for control operations. It features a 3-position interface with spring return two-way functionality and 4 Normally Open (NO) contacts. The switch's design includes a slim 10mm contact block for easy installation in tight spaces. Its lightweight construction and removable operator enhance user convenience, while the separate contact block simplifies both installation and removal processes. This selector switch is part of the YW series, known for its reliable performance in various industrial applications.
