IDEC HW1S-5TF22-K Selector Switch 5Position 2NO+2NC Non-Illuminated Maintained Knob Knob Plastic

Product Code: HW1S-5TF22-K

  • 10 A selector switch, non-illuminated
  • IP20/IP65 protection for robust use
  • CE, CSA, UL approved for safety
  • Maintained function with knob actuator
  • 22 mm mounting hole diameter
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

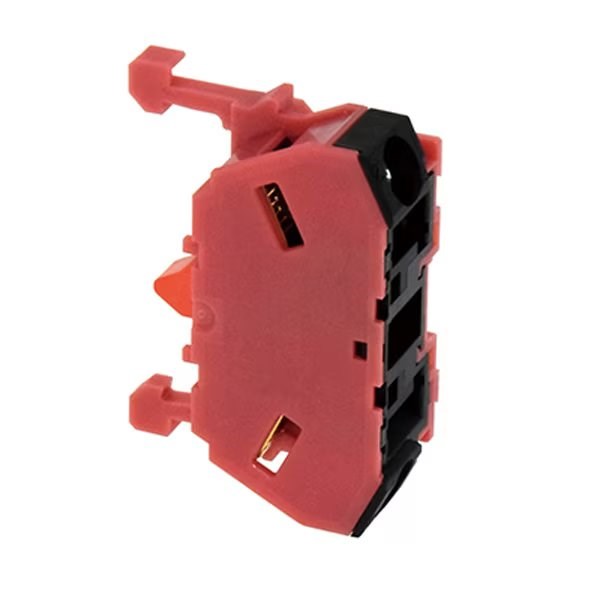

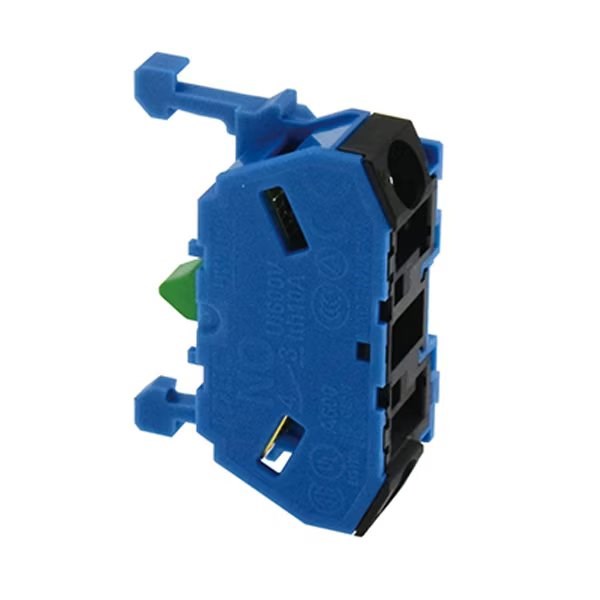

Components Selector Switch 5 Position Operator Contact Block Adaptor 1 NO Contact Block 1 NC Contact Block
No. of Normally-open Contacts 2
No. of Normally-closed Contacts 2
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Knob
Bezel Material Plastic
Contact Configuration 2NO+2NC
Degree of Protection IP20, IP65
Function Maintained
Illumination Non-Illuminated
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 5
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1S-5TF22-K is a versatile selector switch from the HW series, featuring a 5-position knob with maintained operation. It includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts for comprehensive control options. The switch is designed with a durable plastic bezel and is suitable for 22mm panel cutouts, ensuring easy installation and integration into various systems. This robust switch provides reliable performance in diverse industrial settings.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
