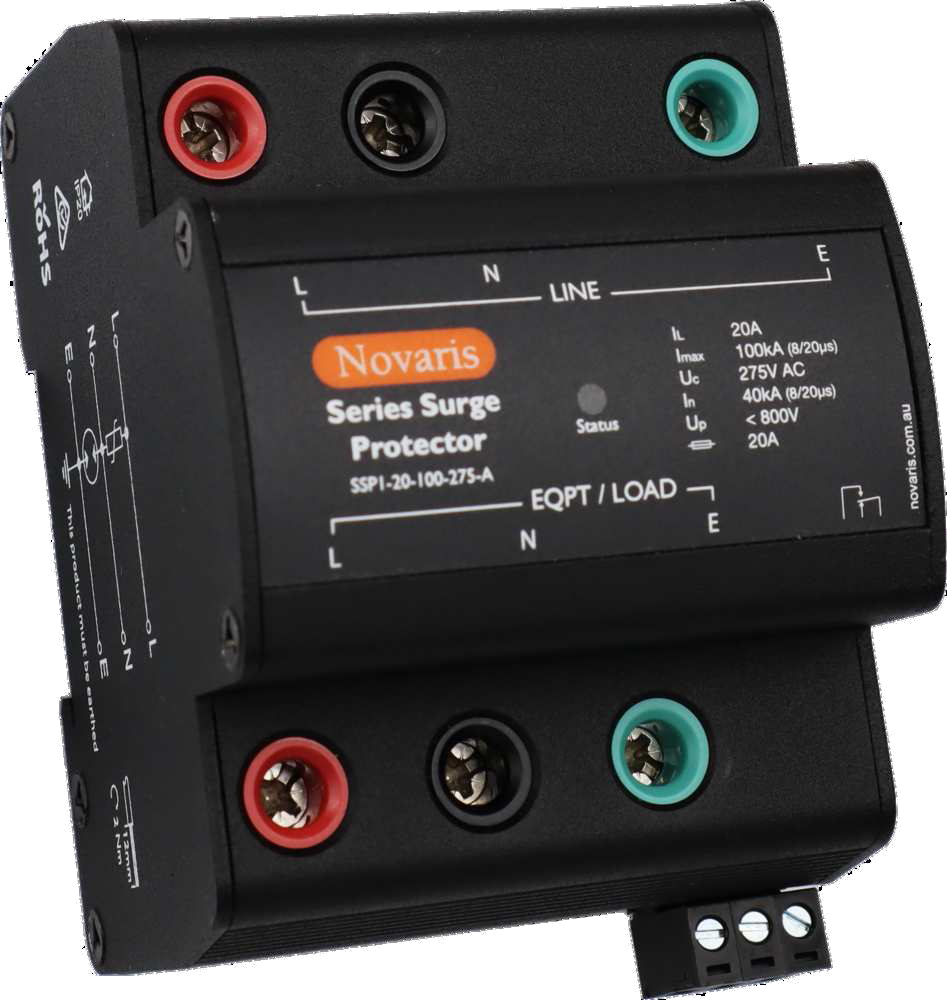

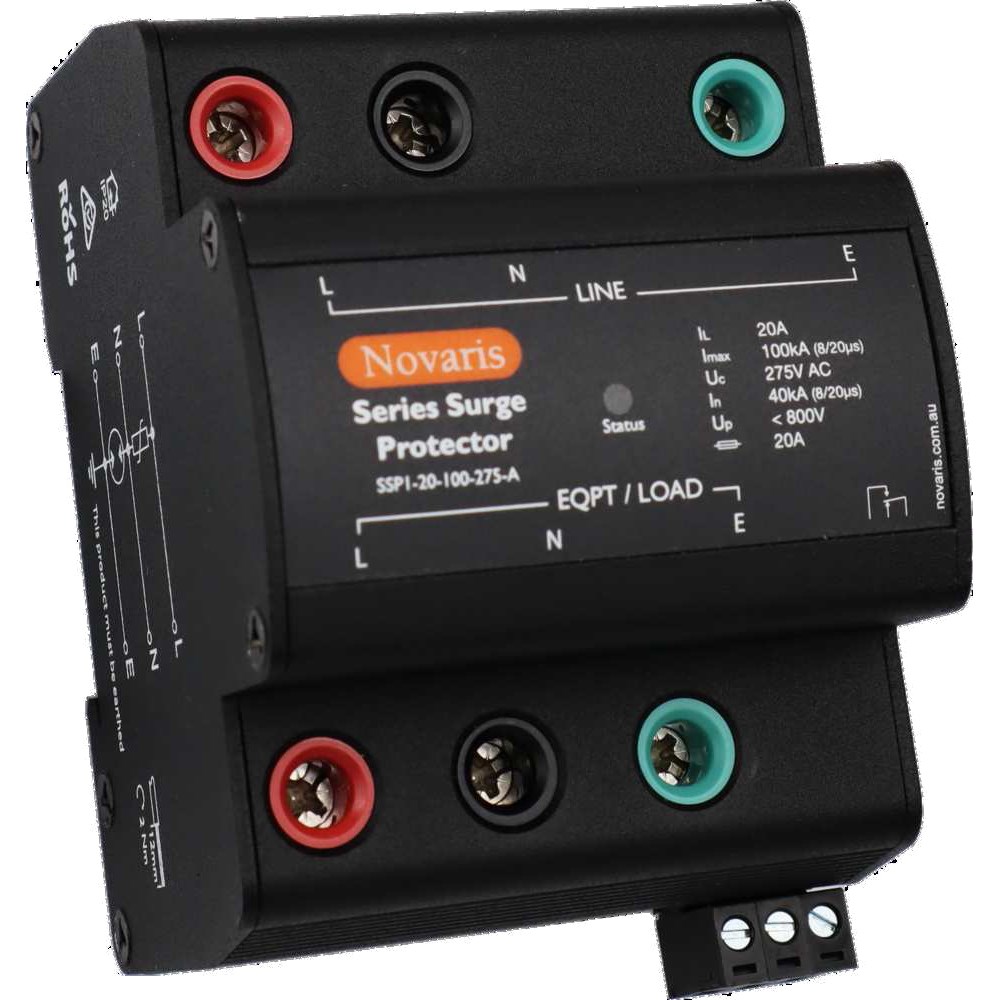

Novaris SSP1-20-100-275-A Surge Protector 6.25kA 15kA 1 PH 20A 100kA 230VAC TS35 Panel Mount Metal IP20

Product Code: SSP1-20-100-275-A

230 VAC, 20 A single-phase surge protection
LED status display for easy monitoring
IP20 rated for indoor use
Compact DIN rail or panel mounting
Fast response time <5 ns (L-N)

Specifications

Dimensions (mm)	72W x 69H x 95D
Weight (g)	465
Product Type	Surge Protector
Brand	NOVARIS
Degree of Protection	IP20
Depth	95 mm
Discharge Current	100 kA
Display Type	LED Status
Fuse Rating	20 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Lightning Impulse Current	6.25 kA (L-N), 15 kA (N-PE)
Material	Metal
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail, Panel
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	20 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<800 V
Weight	335 g
Width	72 mm
