Specifications

Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Enclosure Material	Metal
Backup fuse rating (A)	63
Maximum Continuous Voltage AC (V)	275
Short Circuit Withstand Level (kA)	25

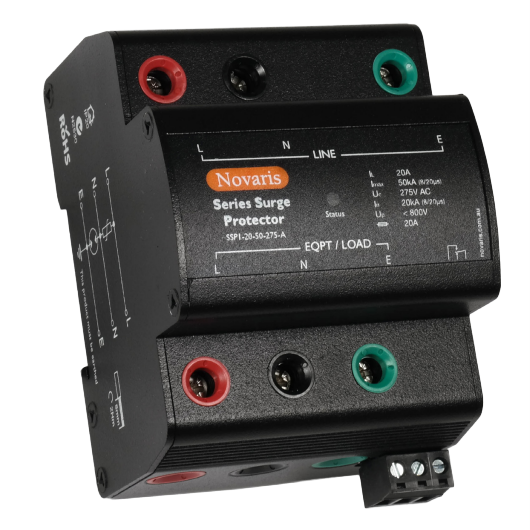

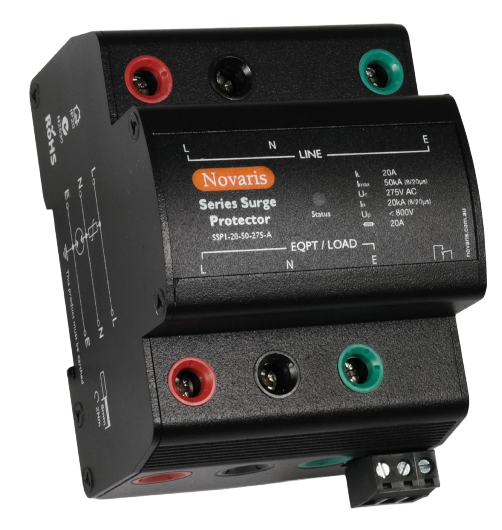

Product Type	Surge Protector
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Depth	95 mm
Discharge Current	100 kA
Display Type	LED Status
Fuse Rating	32 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Lightning Impulse Current	6.25 kA (L-N), 15 kA (N-PE)
Material	Metal
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail, Panel
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	32 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<800 V
Weight	335 g
Width	72 mm
