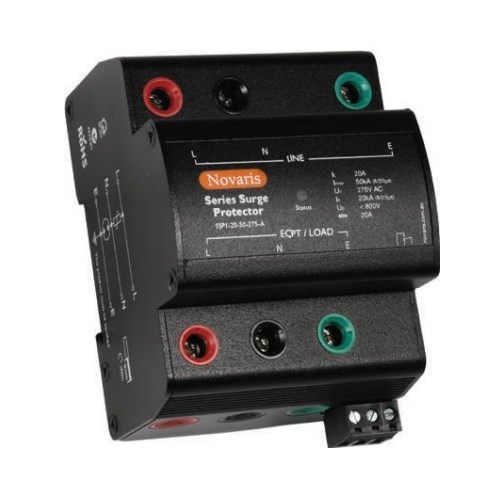

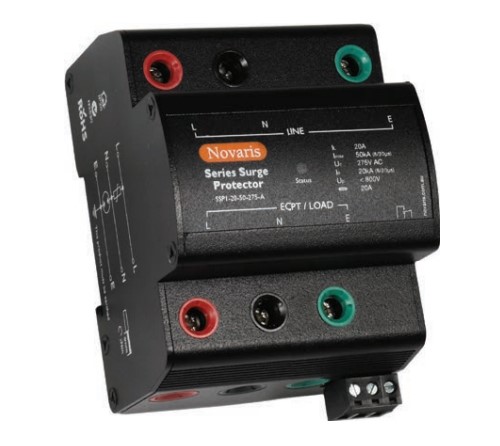

Novaris SSP1-32-100-275 Surge Protector 6.25kA 15kA 1 PH 32A 230VAC TS35 Panel Mount Metal IP20

Product Code: SSP1-32-100-275

  • Surge protection for 230 VAC, 32 A systems
  • Quick response time: <5 ns (L-N), <100 ns (N-PE)
  • IP20-rated metal casing for durability
  • Easy TS35 DIN rail or panel mounting
  • Meets IEC, AS/NZS, UL, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Lightning Impulse Current (10/350 &#181;s) - Iimp (kA) 12.5 (L-N), 15 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 100 (L-N) 60 (N-PE)
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 40 (L-N), 50 (N-PE)
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (&#176;C) -40 to 70
Dimensions (mm) 54W x 69H x 95L
Voltage Protection Level - Up (kV) <1.7 (L-N)
Maximum Load Current - I? (A) 32
Weight (g) 375
Product Type Surge Protector
Brand NOVARIS
Series SSP1
Connection Type Series
Degree of Protection IP20
Depth 95 mm
Display Type LED Status
Fuse Rating 32 A
Height 69 mm
Humidity 5-95%
Interrupt Rating 100 A
Lightning Impulse Current 6.25 kA (L-N), 15 kA (N-PE)
Material Metal
Modes of Protection L-N, L-PE, N-PE
Mounting Type TS35 DIN Rail, Panel
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 32 A
Rated Short Circuit Current 25 kA
Rated Voltage 230 VAC
Response Time <5 ns (L-N), <100 ns (N-PE)
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level <800 V
Weight 335 g
Width 54 mm

Description

The Series Surge Protector is a single-phase device designed for 1P+N+PE systems. It operates at a nominal voltage of 230 VAC and can handle a maximum continuous operating voltage of 275VAC. In terms of protection, it has a maximum discharge current of 100kA (L-N) and 60kA (N-PE) at 8/20ms, as well as a nominal discharge current of 40kA (L-N) and 50kA (N-PE) at 8/20us. This surge protector also offers a maximum load current of 32A and a voltage protection level of &lt;1700V (L-N) when the nominal discharge current is applied. It features series connection and provides all mode protection. Each phase has an LED status indicator, making it easy to monitor. The surge protector is designed for DIN rail mounting, ensuring convenient installation.
