Specifications

Nominal Discharge Current (8/20µs) - In (kA)	40
No. of Phases	3
Nominal Voltage AC (V)	230
Dimensions (mm)	72W x 69H x 95D
Backup fuse rating (A)	63
Maximum Load Current - I? (A)	63
No. of Ports	2
Weight (g)	400
Maximum Discharge Current (8/20µs) (kA)	100
Earth Leakage Current (A)	<10
Short Circuit Withstand Level (kA)	25

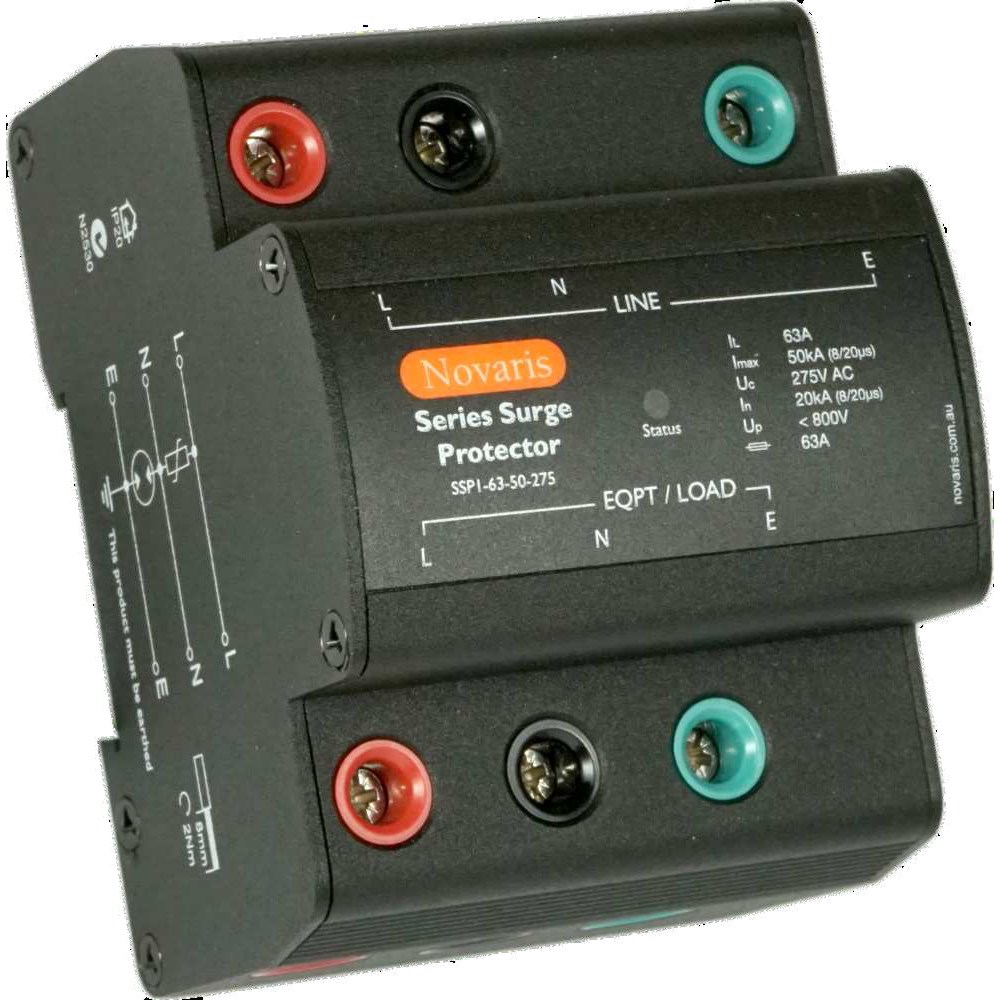

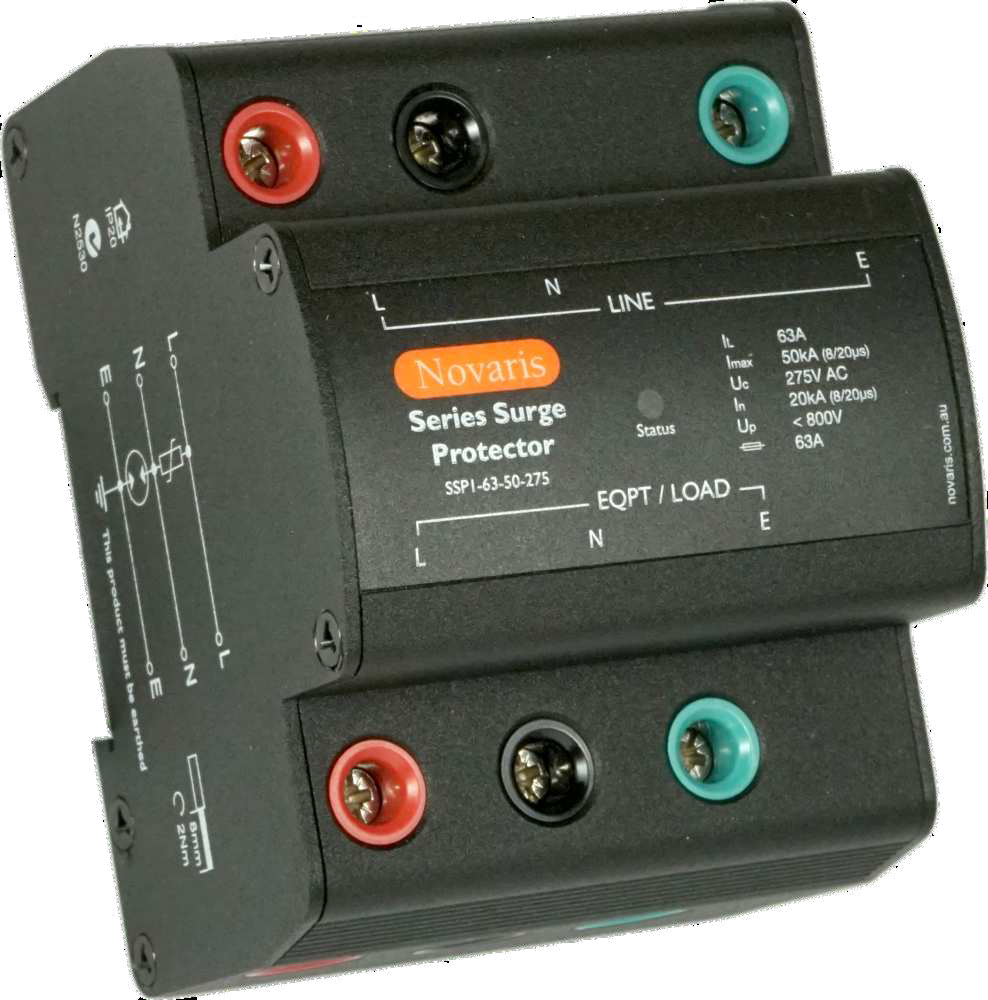

Product Type	Surge Protector
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Depth	95 mm
Discharge Current	50 kA
Display Type	LED Status
Fuse Rating	63 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Lightning Impulse Current	15 kA
Material	Metal
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail, Panel
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	63 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<800 V
Weight	395 g
Width	54 mm
