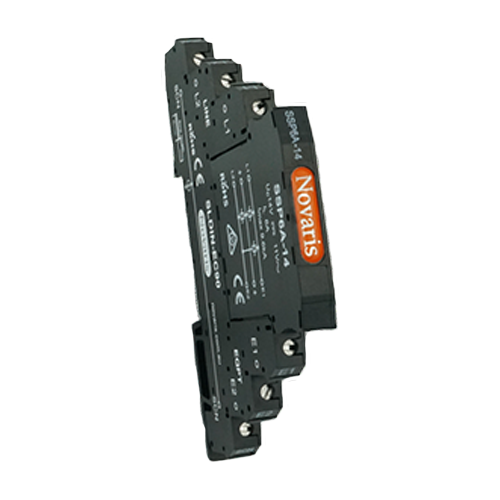

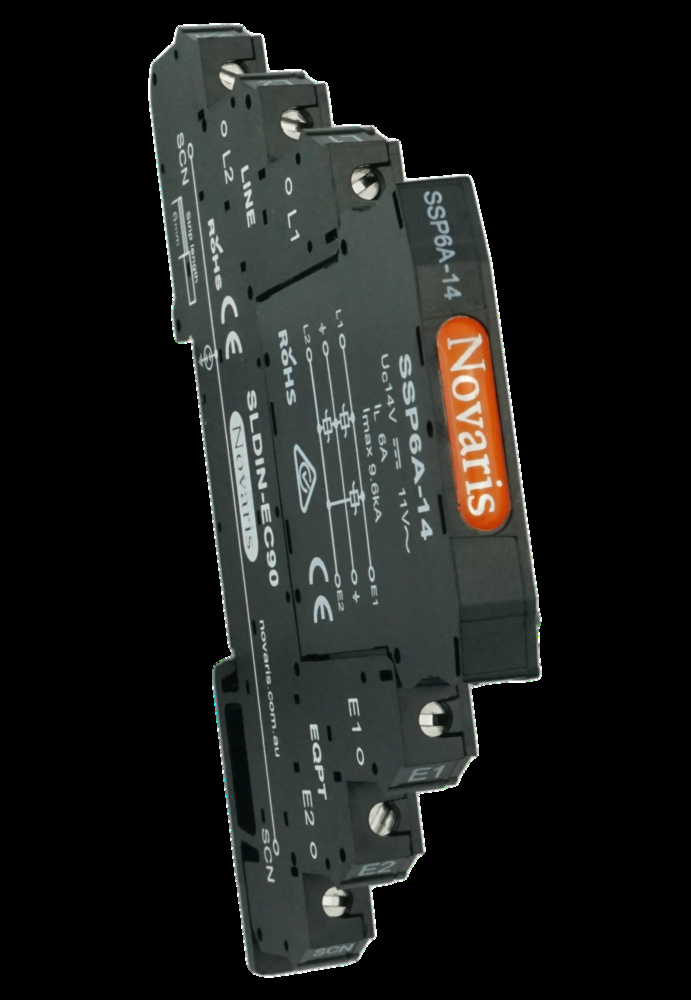

Novaris SSP6A-14-EC90 Surge Protector 4.8kA 9.6kA 14VDC TS35 IP20

Product Code: SSP6A-14-EC90

  • Protects signal lines up to 14 VDC
  • Handles 4.8 kA per line, 9.6 kA common mode
  • Compact size: 7 mm wide, mounts on TS35 DIN rail
  • Fast response time under 5 ns
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 7W x 68H x 102L
Maximum Continuous Operating Voltage MCOV AC (V) 11
Maximum Continuous Operating Voltage MCOV DC (V) 14
Maximum Discharge Current (8/20µs) - Imax (kA) 4.8 (per line), 9.6 (common mode)
Operational Temperature Range (°C) -40 to 70
No. of Pairs 1
Voltage Protection Level (1kV/µs) - Up (kV) 0.035 (L-L, L-PE)
Maximum Load Current - I? (A) 6
Base Option EC90
Weight (g) 35
Product Type Surge Protector
Brand NOVARIS
Series SSP6A
Base Type EC90 Indirect Earthing
Capacitance 48 nF
Connection Type Series
Degree of Protection IP20
Depth 68 mm
Height 102 mm
Humidity 5-95%
Material Polycarbonate
Modes of Protection Transverse and Common Modes
Mounting Type TS35 DIN Rail
Number of Lines 1 pair
Operational Temperature -40 to 70 deg C
Rated Current 4.8 kA (Per Line), 9.6 kA (Common Mode)
Rated Voltage 14 VDC
Resistance 0.02 Ohm
Response Time <5 ns
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Suitable For Use With Twisted Pair Signaling
Tightening Torque 0.5 N-m
Voltage Protection Level 35 V
Weight 35 g
Width 7 mm

Description

The Novaris SSP6A-14-EC90 is part of the Slimline Series, designed to provide surge protection for twisted pair signaling schemes. This device supports load currents up to 6A and offers two different earthing options for enhanced safety and reliability. Its plug-in design ensures easy replacement and testing without the need for rewiring.
