Specifications

Dimensions (mm)	102W x 68H x 7D
Operational Temperature Range (°C)	-20 to 40
Response Time (ns)	5
Enclosure Material	Polycarbonate UL 94 V-0
Maximum Load Current - I? (A)	6
Weight (g)	35
Earth Fault Protection	90 V isolation between DIN rail earth and shield with -EC90 base option
Maximum Continuous Voltage DC (V)	26
Maximum Continuous Voltage AC (V)	20
Maximum Discharge Current (8/20µs) (kA)	4.8

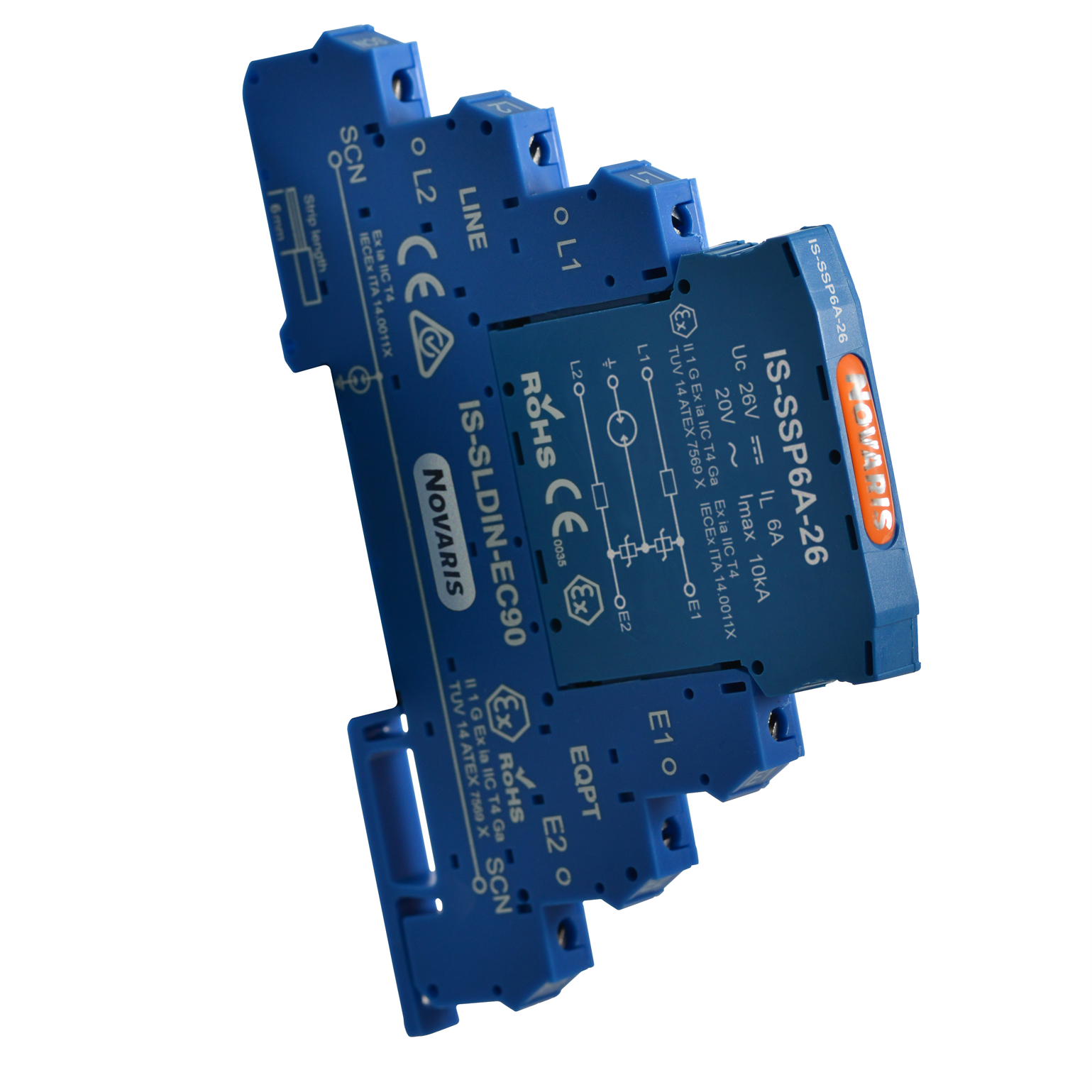

Product Type	Surge Protector With Base
Brand	NOVARIS
Base Type	EC90 Indirect Earthing
Capacitance	28 nF
Connection Type	Series
Degree of Protection	IP20
Depth	7 mm
Height	68 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-20 to 40 deg C
Rated Current	4.8 kA (Per Line), 9.6 kA (Common Mode)
Rated Power	2.2 W
Rated Voltage	26 VDC
Resistance	0.02 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 60079-0, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Tightening Torque	0.5 N-m
Voltage Protection Level	55 V
Weight	35 g
Width	102 mm
