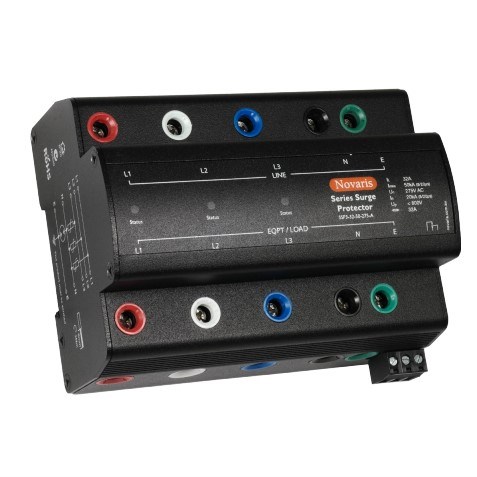

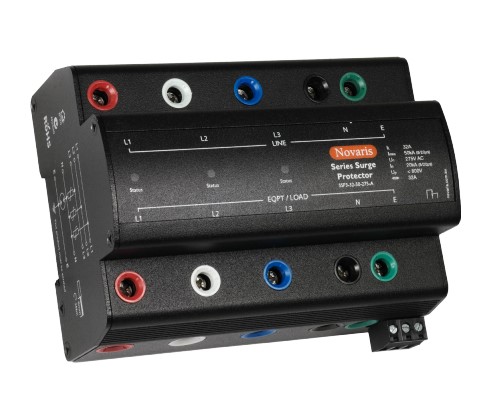

Novaris SSP3-20-50-275-A Surge Protector 3 PH 20A 230VAC TS35 Panel Mounting Metal IP20

Product Code: SSP3-20-50-275-A

  • 230 VAC, 20 A, 3-phase surge protection
  • LED status display for each phase
  • Compact design: 126x69x95 mm
  • Quick response time: <5 ns (L-N)
  • Complies with IEC & AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 126W x 69H x 95L
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 50 (L-N) 60 (N-PE)
No. of Poles 3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-N), 50 (N-PE)
No. of Phases 3
Nominal Voltage AC (V) 230
Operational Temperature Range (&#176;C) -40 to 70
Voltage Protection Level - Up (kV) <1.7 (L-N), <1.3 (N-PE)
Maximum Load Current - I? (A) 20
Alarm Contact Yes
Weight (g) 690
Product Type Surge Protector
Brand NOVARIS
Series SSP3
Connection Type Series
Degree of Protection IP20
Depth 95 mm
Display Type LED Status per Phase
Fuse Rating 20 A
Height 69 mm
Humidity 5-95%
Interrupt Rating 100 A
Material Metal
Modes of Protection L-N, L-PE, N-PE
Mounting Type TS35 DIN Rail, Panel
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 20 A
Rated Short Circuit Current 25 kA
Rated Voltage 230 VAC
Response Time <5 ns (L-N), <100 ns (N-PE)
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level <800 V
Weight 690 g
Width 126 mm

Description

The Series Surge Protector is a three-phase device with 3P+N+PE configuration. It operates at a nominal voltage of 230 VAC and has a maximum continuous operating voltage of 275VAC. It offers high levels of protection with a maximum discharge current of 50kA (L-N) and 60kA (N-PE) at 8/20ms. The nominal discharge current is 20kA (L-N) and 50kA (N-PE) at 8/20us. With a maximum load current of 20A, it provides reliable protection against voltage surges, with a voltage protection level of less than 1700V (L-N) when the nominal discharge current is applied. The Series Surge Protector features series connection active alarm and all mode protection. It also has LED status indicators for each phase and can be conveniently mounted on DIN rails.
