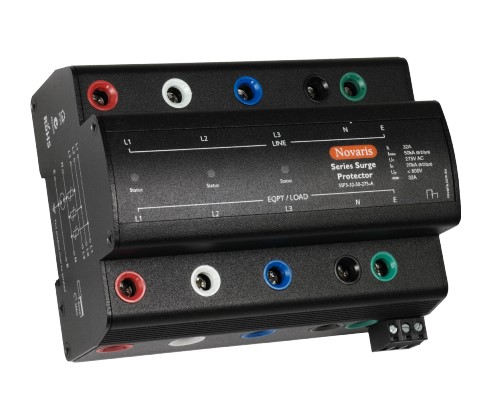

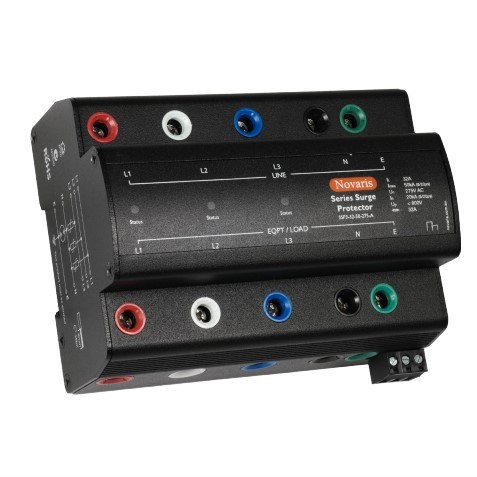

Novaris SSP3-32-50-275-A Surge Protector 3-P 3 PH 32A 50kA 230VAC TS35 Panel Mounting Metal IP20

Product Code: SSP3-32-50-275-A

  • Surge protection for 230 VAC, 32 A systems
  • LED status display per phase
  • Mounts on TS35 DIN rail or panel
  • Fast response time: <5 ns (L-N)
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 95H x 126W x 69D
No. of Poles 3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-N), 50 (N-PE)
No. of Phases 3
Nominal Voltage AC (V) 230
Operational Temperature Range (&#176;C) -40 to 70
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 50 (L-N) 60 (N-PE)
Voltage Protection Level - Up (kV) <1.3 (L-N, N-PE)
Alarm Contact Yes
Maximum Load Current - I? (A) 32
Product Type Surge Protector
Brand NOVARIS
Series SSP3
Connection Type Series
Degree of Protection IP20
Depth 95 mm
Discharge Current 50 kA
Display Type LED Status per Phase
Fuse Rating 32 A
Height 69 mm
Humidity 5-95%
Interrupt Rating 100 A
Material Metal
Modes of Protection L-N, L-PE, N-PE
Mounting Type TS35 DIN Rail, Panel
Number of Poles 3
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 32 A
Rated Short Circuit Current 25 kA
Rated Voltage 230 VAC
Response Time <5 ns (L-N), <100 ns (N-PE)
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level <800 V
Weight 690 g
Width 126 mm

Description

The Series Surge Protector is a three-phase device designed for 230 VAC nominal voltage. It has a maximum continuous operating voltage of 275VAC. The protector offers maximum discharge currents of 50kA (L-N) and 60kA (N-PE) at 8/20ms, with nominal discharge currents of 20kA (L-N) and 50kA (N-PE) at 8/20us. It can handle a maximum load current of 32A and provides a voltage protection level of &lt;1300V (L-N, N-PE) at the nominal discharge current. The protector features series connection active alarm, all mode protection, LED status per phase, and DIN rail mounting.
