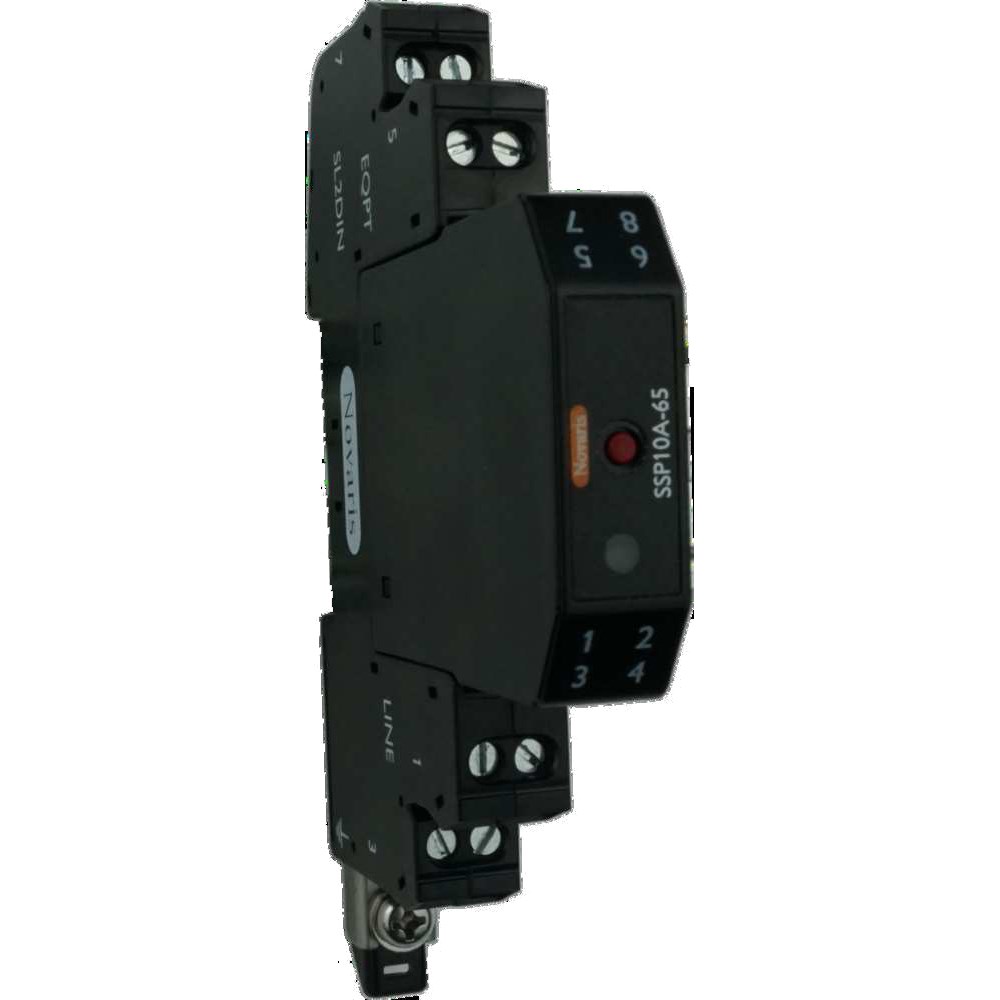

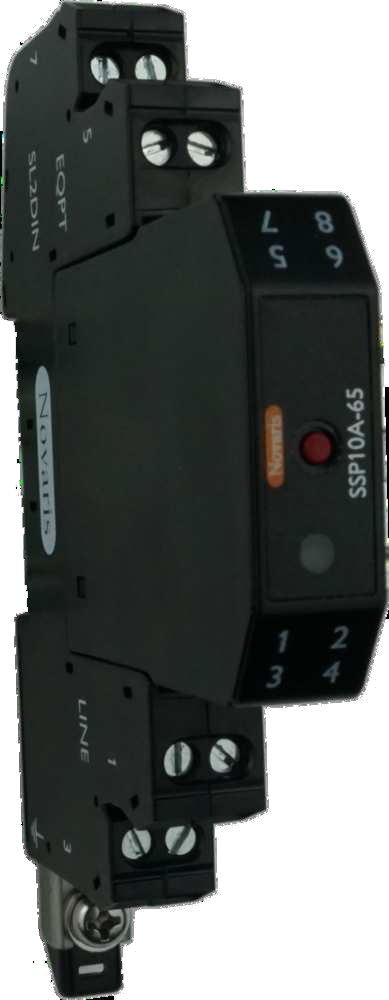

Novaris SSP10A-65 Surge Protector With Base 7.5kA 15kA 15kA 65VDC TS35 IP20

Product Code: SSP10A-65

Surge protection for 65 VDC systems
Handles up to 15 kA discharge current
Compact design: 12 mm width
Quick response time under 5 ns
Fits TS35 DIN Rail mounting

Specifications

Product Type	Surge Protector With Base
Brand	NOVARIS
Capacitance	9 nF
Degree of Protection	IP20
Depth	110 mm
Discharge Current	15 kA
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	7.5 kA (Per Line), 15 kA (Common Mode)
Rated Short Circuit Current	10 A
Rated Voltage	65 VDC
Resistance	0.02 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS 4117
Tightening Torque	0.5 N-m
Voltage Protection Level	160 V
Weight	55 g
Width	12 mm
