Specifications

Ambient Temperature Range (°C)	-25 to 60
Dimensions (mm)	18W x 90H x 75.5D
Rated Control Supply Voltage AC (V)	20 - 24 (50/60Hz) 25 - 70V (50/60Hz ON-Period = 5s) 20 - 70V (DC ON-Period = 5s)
Rated Insulation Voltage (V)	690
Rated Impulse Withstand Voltage (kV)	6
Tightening Torque (Nm)	Auxiliary Circuit: 0.8 - 1.2Nm
Suitable For	MS116, MS132, MO132, MS165, MO165
Weight (kg)	0.1
Storage Temperature Range (°C)	-50 to 80
Wire Stripping Length (mm)	Auxiliary Contact: 10mm
Recommended Screwdriver	Pozidriv 2

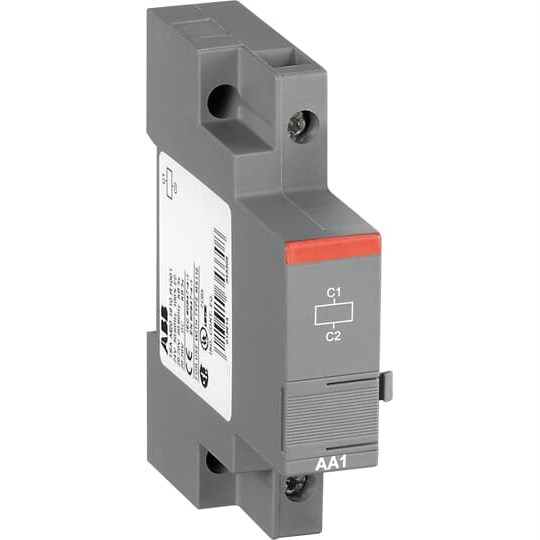

Product Type	Shunt Trip
Brand	ABB
Ambient Temperature	-25 to 60 deg C
Auxiliary Circuit Connecting Capacity	Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 2 x 0.75-1.5 sq-mm, Flexible 1/2 x 0.75-2.5 sq-mm, Rigid 1/2 x 1-4 sq-mm
Depth	75.5 mm
Height	90 mm
Mounting Position	Left
Mounting Type	Left
Operational Temperature	-50 to 80 deg C
Power Loss	132.5 W
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Voltage	20-24 VAC
Standards and Approvals	CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508, UL60947-1, UL60947-4-1
Storage Temperature	-50 to 80 deg C
Suitable For Use With	MS116, MS132, MO132, MS165, MO165 Motor Starters
Terminal Type	Screw
Weight	0.1 kg
Width	18 mm
Wire Stripping Length	10 mm
