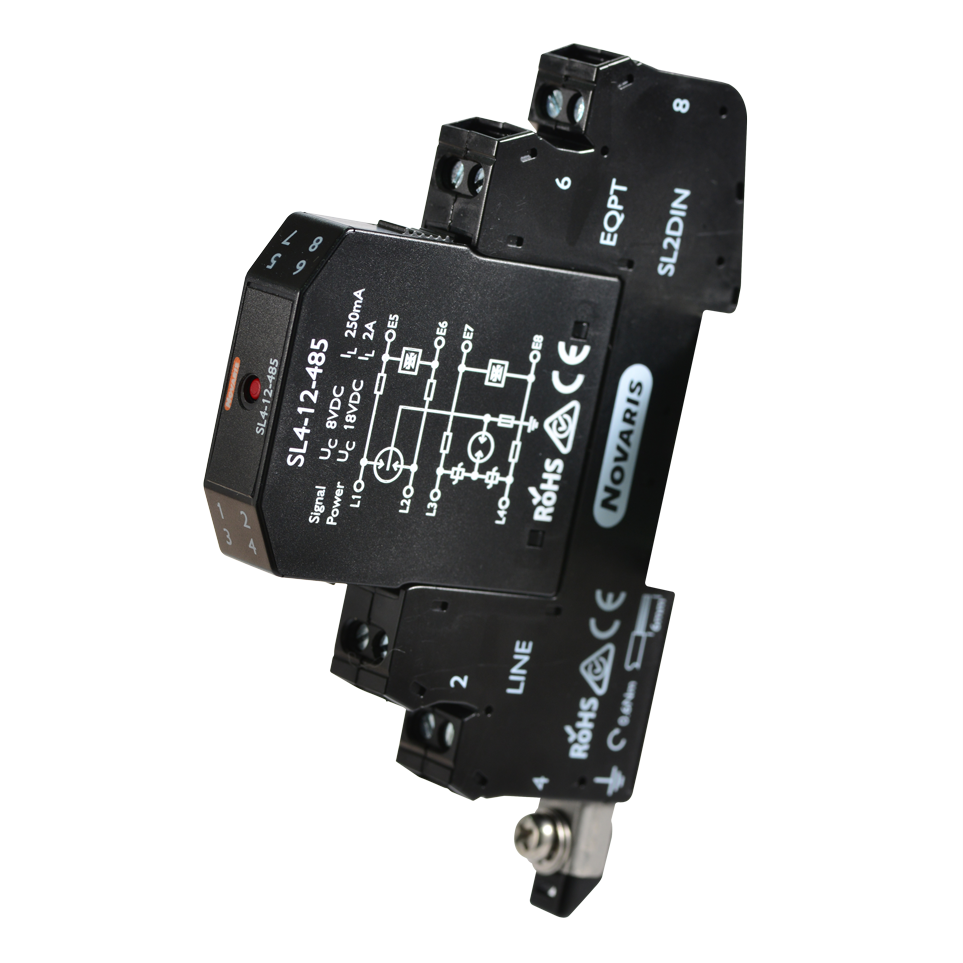

Specifications

Maximum Continuous Operating Voltage MCOV AC (V)	12 (Power), 6 (Signal)
Maximum Continuous Operating Voltage MCOV DC (V)	18 (Power), 8 (Signal)
Maximum Discharge Current (8/20µs) - Imax (kA)	4.8 (Power), 20 (Signal)
No. of Pairs	1 (Power), 1 (Signal)
Voltage Protection Level (3kA 8/20µs) - Up (kV)	<0.09 (Power), 0.015 (Signal)
Maximum Load Current - I? (A)	2 (Power), 0.25 (Signal)
Product Type	Signal and Power Surge Protection
Brand	NOVARIS
Series	SL
Capacitance	<25 nF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	4.8 kA (Power), 20 kA (Signal)
Rated Voltage	12 V, 6 V
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, AS/NZS4117, AS7708
Tightening Torque	0.5 N-m
Voltage Protection Level	<50V Power, 9V Signal
Weight	65 g
Width	12 mm
