Specifications

Dimensions (mm)	7W x 68H x 102D
Response Time (ns)	<5
Enclosure Material	Polycarbonate UL94 V-0
Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
Weight (g)	40
Mounting Method	TS35 DIN Rail
Minimum Relative Humidity	5%
Operating Humidity	95%
Maximum Continuous Voltage DC (V)	16
Maximum Continuous Voltage AC (V)	11
Maximum Discharge Current (10/350µs) (kA)	1.25
Maximum Discharge Current (8/20µs) (kA)	5
Insertion Loss (dB)	<0.5 @ <1MHz

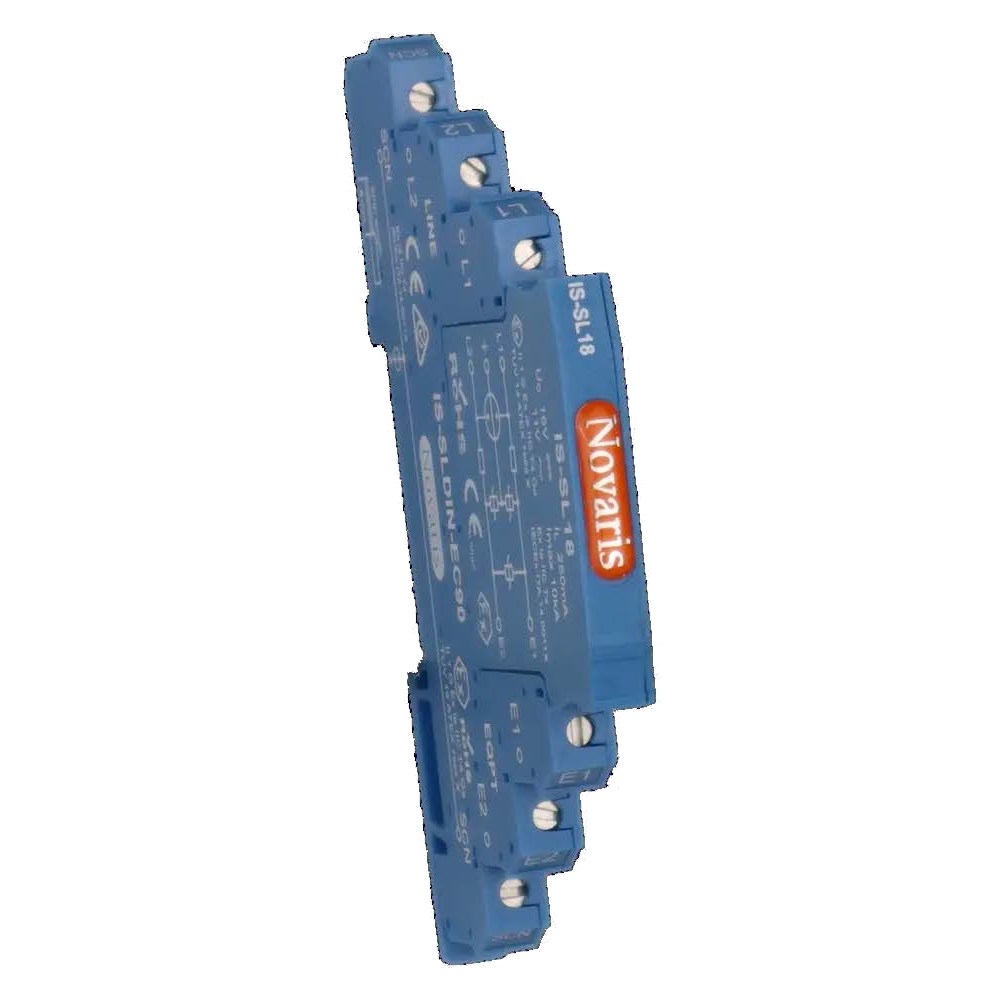

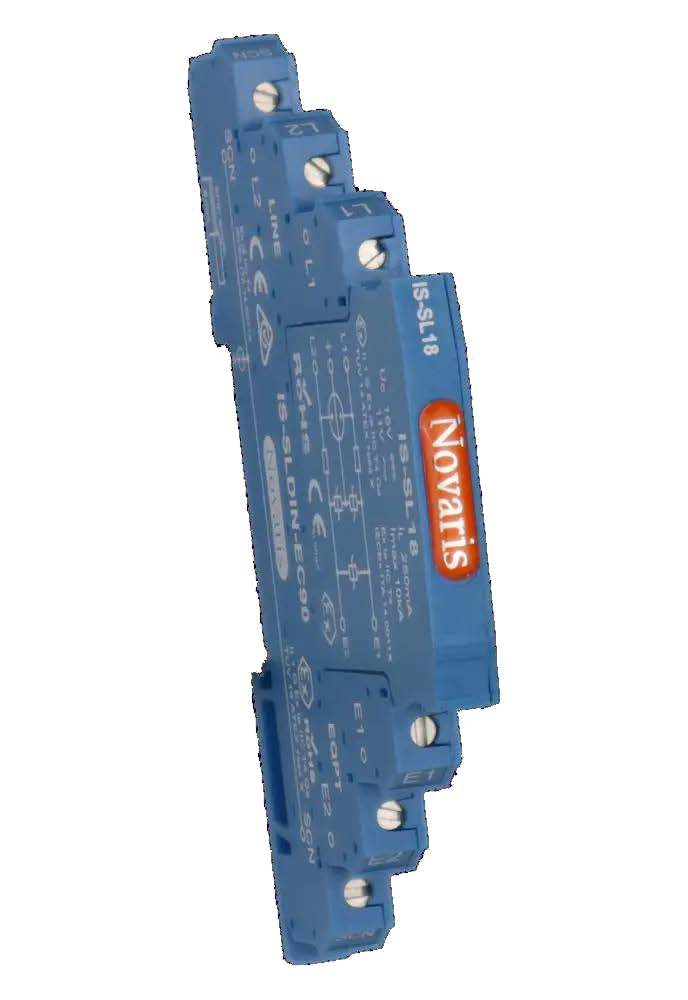

Product Type	Signal Surge Protector With Base
Brand	NOVARIS
Base Type	EC90 Indirect Earthing
Capacitance	17 nF
Connection Type	Series
Degree of Protection	IP20
Depth	102 mm
Height	68 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-20 to 40 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Power	1.3 W
Rated Voltage	16 VDC
Resistance	8.2 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 60079-0, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Tightening Torque	0.5 N-m
Voltage Protection Level	40 V
Weight	35 g
Width	7 mm
