Specifications

Dimensions (mm)	110W x 71H x 12D
Operational Temperature Range (°C)	-40 to 70
Response Time (ns)	5
Enclosure Material	Polycarbonate
Maximum Load Current - I? (A)	0.5
Weight (g)	75
Maximum Continuous Voltage DC (V)	34
Maximum Continuous Voltage AC (V)	24
Maximum Discharge Current (8/20µs) (kA)	10

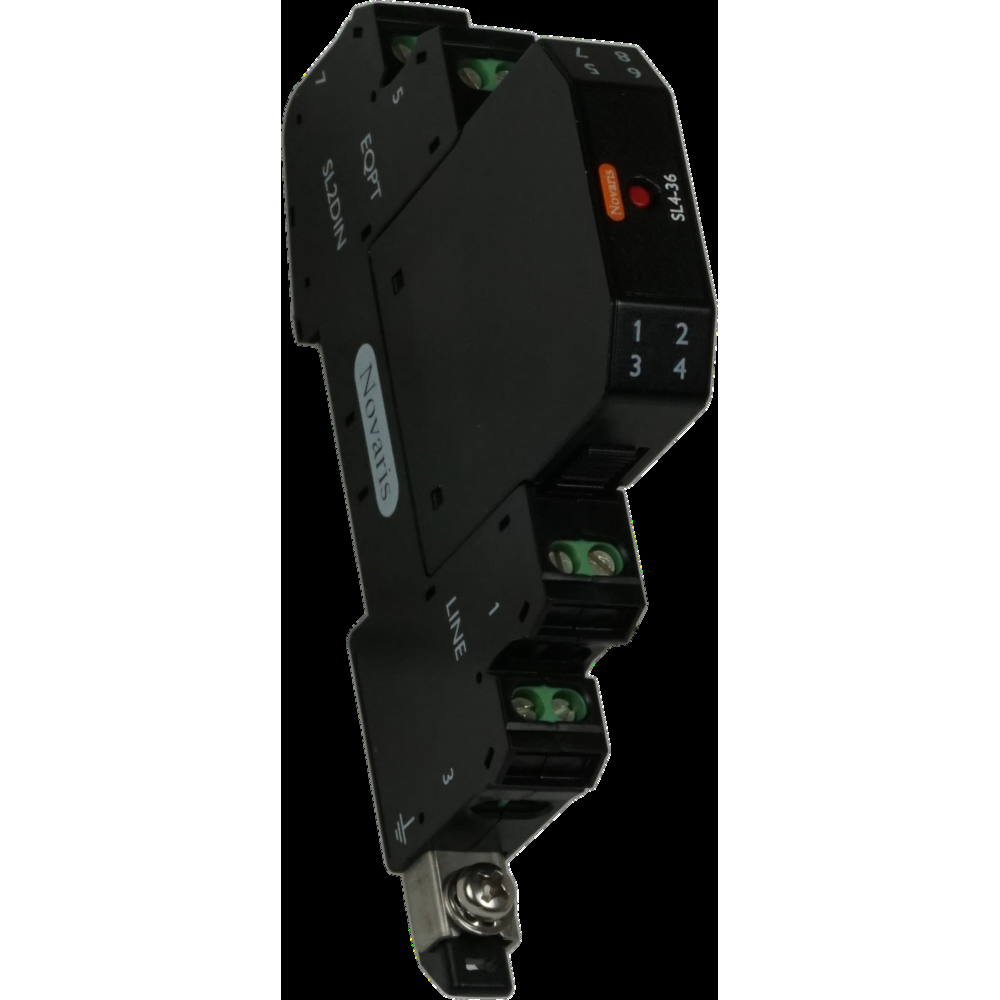

Product Type	Signal Surge Protection With Base
Brand	NOVARIS
Capacitance	32 pF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	2 Pair
Operational Temperature	-40 to 70 deg C
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Short Circuit Current	500 mA
Rated Voltage	34 VDC
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
Tightening Torque	0.5 N-m
Voltage Protection Level	40 V
Weight	55 g
Width	12 mm
