Specifications

Response Time (ns)	5
Enclosure Material	Polycarbonate
Maximum Load Current - I? (A)	0.25
Weight (g)	35
Maximum Continuous Voltage DC (V)	34
Maximum Continuous Voltage AC (V)	24
Maximum Discharge Current (8/20µs) (kA)	5

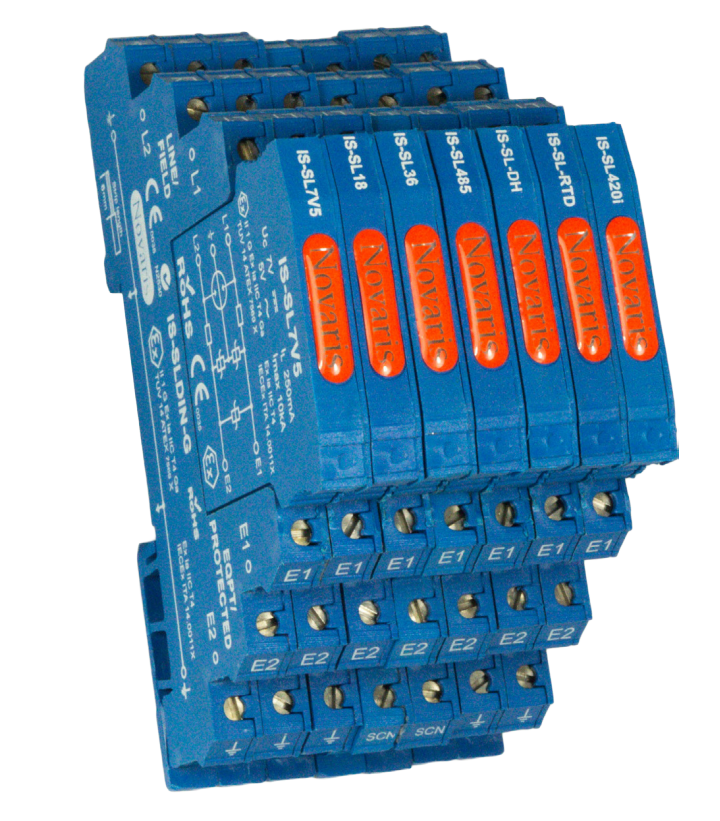

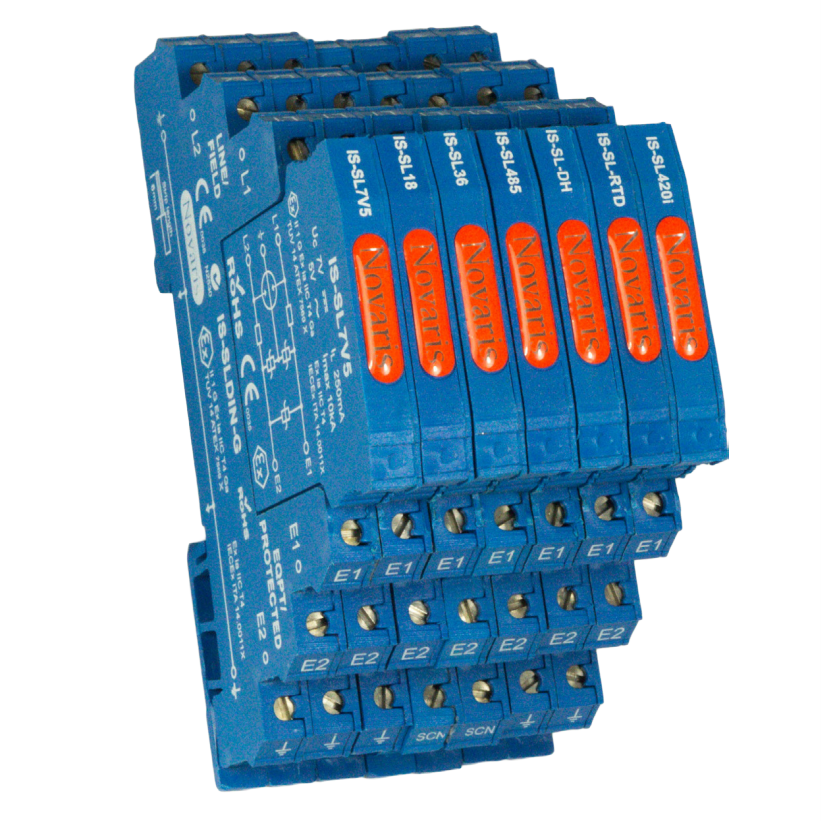

Product Type	Signal Surge Protector
Brand	NOVARIS
Capacitance	9 nF
Connection Type	Series
Degree of Protection	IP20
Depth	102 mm
Height	68 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-20 to 40 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Power	1.3 W
Rated Voltage	34 VDC
Resistance	8.2 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 60079-0, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Tightening Torque	0.5 N-m
Voltage Protection Level	55 V
Weight	35 g
Width	7 mm
