Specifications

Dimensions (mm)	12W x 110H x 71D
Maximum Discharge Current (8/20µs) - Imax (kA)	10
Response Time (ns)	<5
Enclosure Material	Polycarbonate
No. of Lines	1 pair
Maximum Load Current - I? (A)	0.5
Weight (g)	55
Operating Humidity	5% - 95%
Maximum Continuous Voltage DC (V)	34
Maximum Continuous Voltage AC (V)	24
Maximum Discharge Current (8/20µs) (kA)	10 per Line
Insertion Loss (dB)	<0.5
L-L Voltage Protection Level at 1 kV/µs (V)	45
L-L Voltage Protection Level at 3kA 8/20µs (V)	45
L-L Voltage Protection Level at 100V/s (V)	38
L-PE Voltage Protection Level at 1kV/µs (V)	350
L-PE Voltage Protection Level at 3kA 8/20µs (V)	350
L-PE Voltage Protection Level at 100V/s (V)	230
Line Resistance (O)	8.2
L-L Capacitance (nF)	0.032
L-PE Capacitance (nF)	0.012
Operational Temperature Range (°C)	-40 to 70

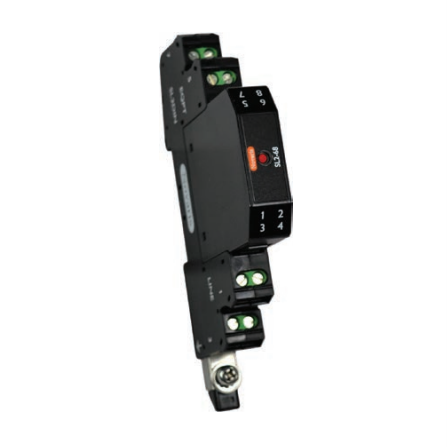

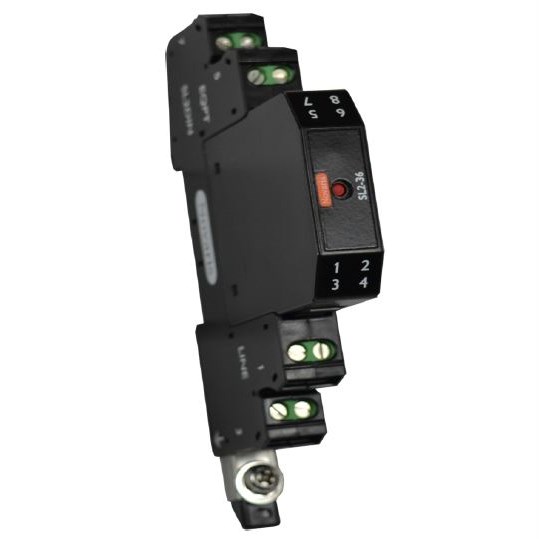

Product Type	Signal Surge Protection With Base and Alarm Output
Brand	NOVARIS
Capacitance	32 pF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Short Circuit Current	500 mA
Rated Voltage	34 VDC
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
Terminal Type	Screw Cage
Tightening Torque	0.5 N-m
Voltage Protection Level	40 V
Weight	70 g
Width	12 mm
