Specifications

Lightning Impulse Current (10/350 µs) - Iimp (kA)	1.25 (per line), 2.5 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V)	46
Maximum Continuous Operating Voltage MCOV DC (V)	65
Maximum Discharge Current (8/20µs) - Imax (kA)	5 (per line), 10 (common mode)
No. of Pairs	1
Voltage Protection Level (3kA 8/20µs) - Up (kV)	0.080 (L-L), 0.6 (L-PE)
Maximum Load Current - I? (A)	0.25
Base Option	G (Direct Earthing)
Dimensions (mm)	102H x 7.5W x 68W
Operational Temperature Range (°C)	-55 to 70

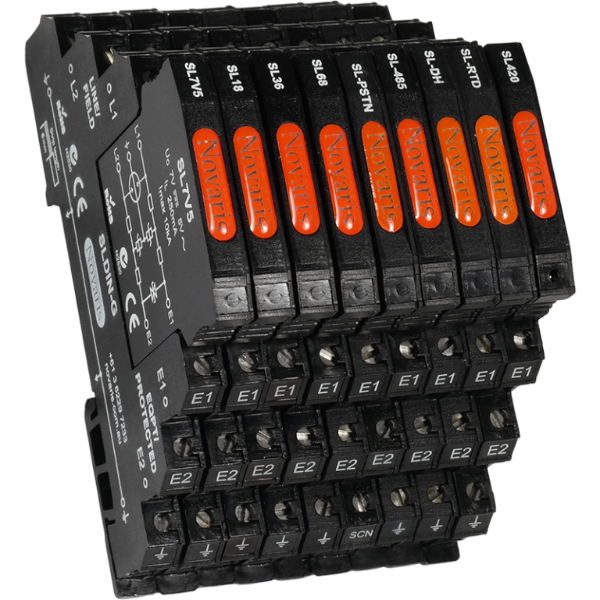

Product Type	Slimline Signal Line Protector
Brand	NOVARIS
Series	SL
Base Type	G Direct Earthing
Capacitance	18 pF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	68 mm
Height	102 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-55 to 70 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	65 VDC
Resistance	8.2 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Tightening Torque	0.5 N-m
Voltage Protection Level	80 V
Weight	35 g
Width	7 mm
