Specifications

Dimensions (mm)	68 * 7 * 102 [H * W * D]
Operational Temperature Range (°C)	-40 - 70°C
Type of Mounting	TS35 DIN Rail

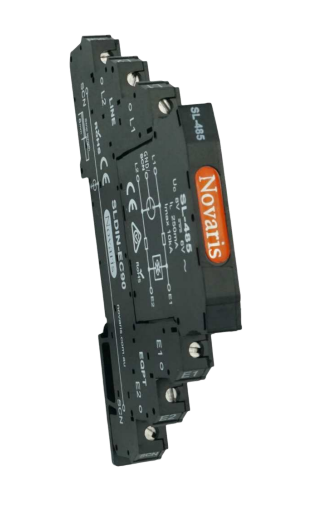

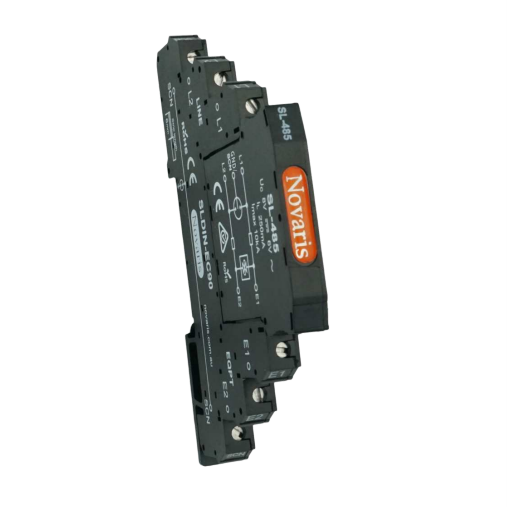

Product Type	Slimline Signal Line Protector
Brand	NOVARIS
Capacitance	18 pF
Connection Type	Series
Degree of Protection	IP20
Depth	68 mm
Height	102 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Pairs	1
Operational Temperature	-55 to 70 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Short Circuit Current	250 mA
Rated Voltage	8 VDC
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Tightening Torque	0.5 N-m
Voltage Protection Level	35 V
Weight	35 g
Width	7.5 mm
