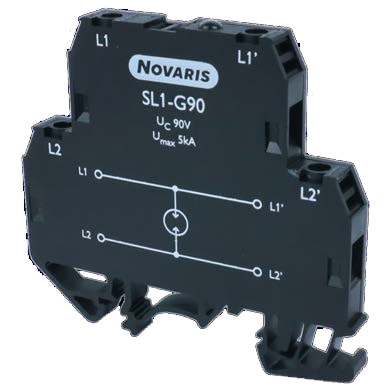

Novaris SL1-G90 Slimline Signal Line Protector 5kA 90VDC Screw Cage Universal TS32/TS35 Rail Mount 62mm H

Product Code: SL1-G90

  • Rated for 90 VDC and 5 kA current
  • Compact size: 6 mm width
  • Fast response time: <5 ns
  • Universal rail mounting TS32/TS35
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 6W x 62H x 68D
Response Time (ns) <5
Weight (g) 25
Product Type Slimline Signal Line Protector
Brand NOVARIS
Capacitance <0.3 pF
Connection Type Screw Cage
Degree of Protection IP20
Depth 68 mm
Height 62 mm
Material Polyamide PA66
Modes of Protection Transverse and Common Modes
Mounting Type Universal TS32/TS35 Rail
Number of Lines 1 pair
Operational Temperature -25 to 70 deg C
Rated Current 5 kA
Rated Voltage 90 VDC
Response Time <5 ns
Standards and Approvals IEC 61643-21
Voltage Protection Level 450 V
Weight 25 g
Width 6 mm
