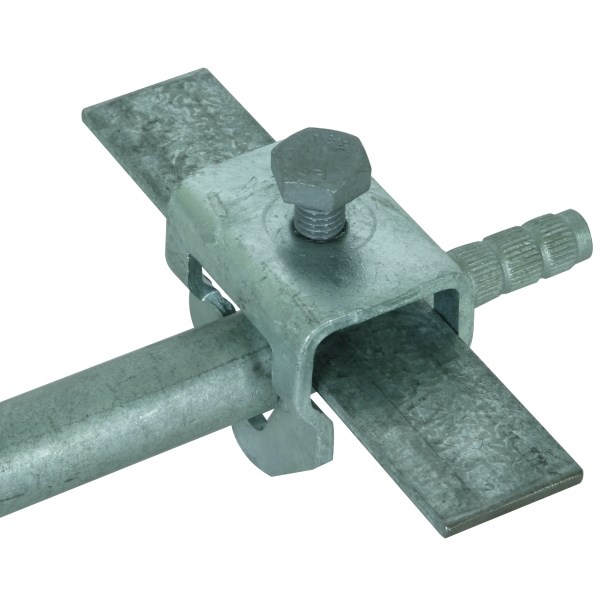

DEHN 630120 Single-Screw Connection Clamp 10mm 30 x 4mm M10 x 25mm Screw Steel

Product Code: 630120

  • M10 x 25 mm screw connection
  • Steel with hot dip galvanized finish
  • Clamping range: 10 mm, 30 x 4 mm
  • Lightning current capacity: 50 kA, 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 5W x 7H x 4D
Suitable For Earth Rods
Weight (kg) 0.15
Class (Lightning Current Carrying Capability) (kA) 100/50
Reference No. 630120
Fixing Hole Ø (mm) -
Surface Protection Hot-dip Galvanized
Earthing Connection Diameter (mm) 20
Clamping Range Rd/Fl (mm) 10 / -30 x 4
Product Type Single-Screw Connection Clamp
Brand DEHN
Clamping Range 10 mm, 30 x 4 mm
Connection Type M10 x 25 mm Screw
Depth 4 mm
Finish Hot Dip Galvanized
Height 7 mm
Lightning Current Carrying Capability 50 kA, 100 kA
Material Steel
Screw Size M10 x 25mm
Standards and Approvals EN 62561-1
Weight 152 g
Width 5 mm
