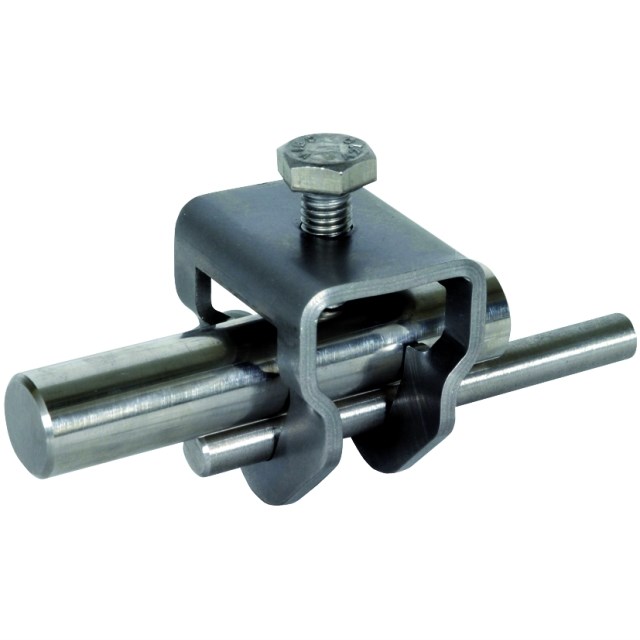

DEHN 630129 Single-Screw Connection Clamp 10mm 30 x 4mm M10 x 25mm Screw Stainless Steel

Product Code: 630129

  • M10 x 25 mm screw connection
  • Stainless steel construction
  • Handles lightning currents up to 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 5W x 7H x 4D
Suitable For Earth Rods
Weight (kg) 0.15
Class (Lightning Current Carrying Capability) (kA) 100/50
Reference No. 630129
Surface Protection Untreated
Earthing Connection Diameter (mm) 20
Clamping Range Rd/Fl (mm) 10 / -30 x 4
Fixing Hole Ø (mm) -
Product Type Single-Screw Connection Clamp
Brand DEHN
Clamping Range 10 mm, 30 x 4 mm
Connection Type M10 x 25 mm Screw
Depth 4 mm
Finish Untreated
Height 7 mm
Lightning Current Carrying Capability 50 kA, 100 kA
Material Stainless Steel
Screw Size M10 x 25mm
Standards and Approvals EN 62561-1
Weight 150 g
Width 5 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
