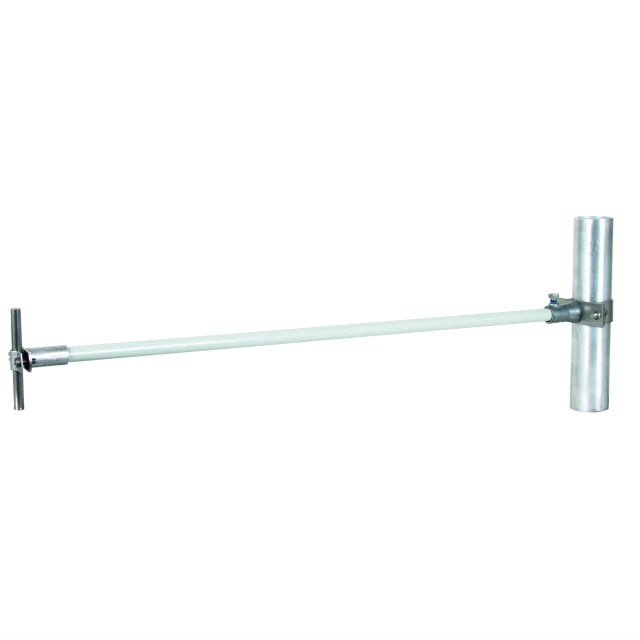

DEHN 106331 Spacer W/Clamp 1030mm L 10mm W 3mm D 110mm H Glass Reinforced Polyester 304 Stainless Steel

Product Code: 106331

  • Designed for isolated lightning protection
  • Made from glass reinforced polyester & 304 SS
  • Operates in -50 to 100°C temperature range
  • Complies with DIN IEC/TS 62561-8 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -50 °C to +100 °C
Dimensions (mm) 10W x 110H x 3D
Length (mm) 1030
Suitable For Isolated Lightning Protection
Weight (kg) 0.715
Accessory Type Spacer
Rod Diameter (mm) 7 - 10
Insulating Clearance (mm) 945
Product Type Spacer With Clamp
Brand DEHN
Ambient Temperature -50 to 100 deg C
Depth 3 mm
Height 110 mm
Length 1030 mm
Material Glass Reinforced Polyester, 304 Stainless Steel
Standards and Approvals DIN IEC/TS 62561-8, VDEV 0185-561-8
Suitable For Use With Isolated Lightning Protection
Weight 0.715 kg
Width 10 mm
