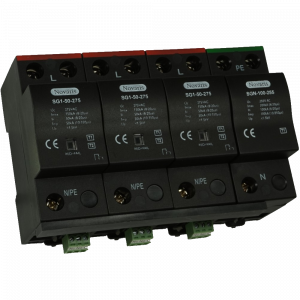

Novaris SG1-50-275-N Spark Gap Surge Diverter 1 PH 50kA 275VAC Shunt

Product Code: SG1-50-275-N

  • Rated for 275 VAC, single-phase systems
  • Quick response time of 100 ns
  • Handles discharge currents up to 50 kA
  • Operates in temperatures from -40 to 80°C
  • Protects in L-N and N-PE modes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 72W x 66H x 90D
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 80
Response Time (ns) 100
Backup fuse rating (A) 500
Maximum Continuous Voltage AC (V) 275
Short Circuit Withstand Level (kA) 10
No. of Ports 1
Product Type Spark Gap Surge Diverter
Brand NOVARIS
Connection Type Shunt
Depth 90 mm
Discharge Current 50 kA
Fuse Rating 500 A
Height 66 mm
Humidity 5-95%
Modes of Protection L-N, N-PE
Number of Ports 1
Operational Temperature -40 to 80 deg C
Phase 1
Rated Short Circuit Current 10 kA
Rated Voltage 275 VAC
Response Time 100 ns
Width 72 mm
