Specifications

Dimensions (mm)	54W x 90H x 66D
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC (V)	230/400
Reference No.	952300
Suitable For	Power Supply Systems
Weight (kg)	0.334
Breaking Capacity AC (kA)	50
Maximum Discharge Current (8/20µs) - Imax (kA)	40
No. of Conductors	3
Mounting Method	DIN Rail 35mm
Maximum Continuous Voltage AC (V)	275

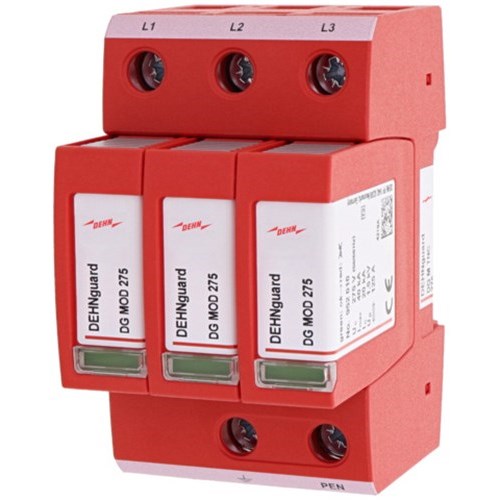

Product Type	Type-2 M-Surge Arrester With TNS System Guard
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Interrupt Rating	125 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Poles	3
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	20 kA
Rated Short Circuit Current	50 kA
Rated Voltage	230/400 V
Response Time	<= 25 ns
SPD Class	Type 2, Class II
Standards and Approvals	KEMA, VDE, UL
Voltage Protection Level	<=1.5 kV
Weight	334 g
Width	54 mm
