Specifications

Ambient Temperature Range (°C)	-60 to +40 (T6), -60 to +55 (T5)
Dimensions (mm)	80W x 93H x 72D
Rated Operational Current (A)	10 (T6)
Rated Operational Voltage AC (V)	550
Weight (kg)	0.41

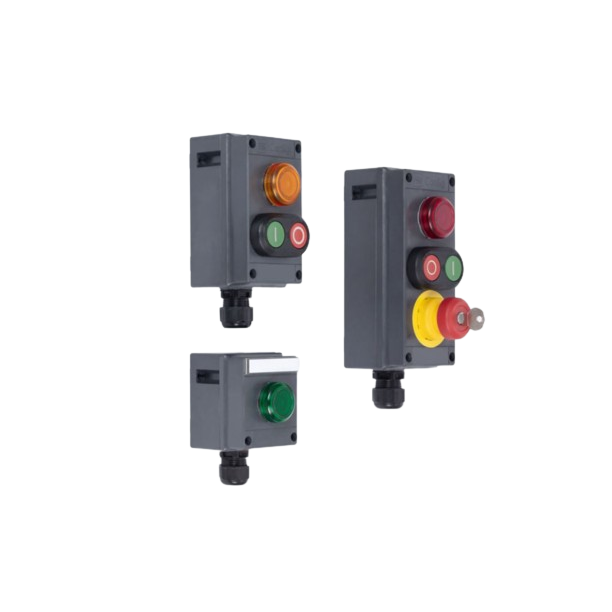

Product Type	Control and Signalling Device
Brand	STAHL
Ambient Temperature	-60 to 40 deg C
Colour	Dark Grey
Contact Configuration	1NC+1NO
Degree of Protection	IP66
Depth	72 mm
Height	93 mm
Material	Polyester Resin, Reinforced Glass Fibre
Number of Poles	2
Rated Current	10 A
Rated Voltage	550 VAC
Standards and Approvals	ATEX, IECEx
Tightening Torque	1.4 N-m
Width	80 mm
