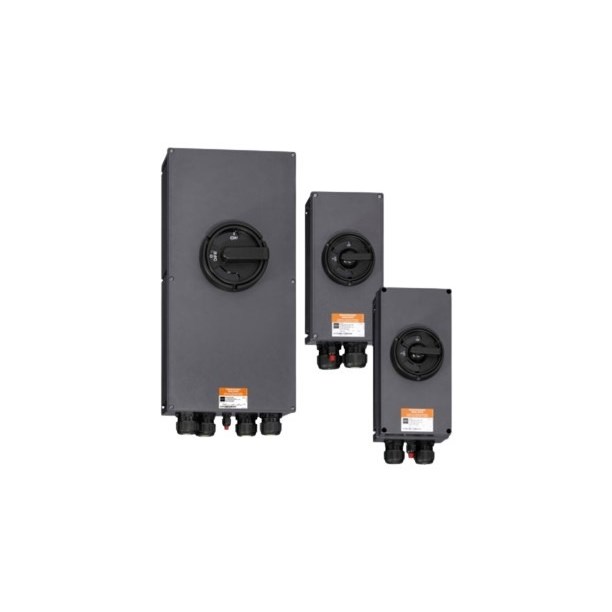

Stahl 200558 Safety Switch 690V 63 A IP66

Product Code: 200558

  • IP66 protection for harsh environments
  • Operates in -40 to 42°C temperature range
  • Certified by ATEX, NEPSI, EAC, IECEx, KGS
  • Rated for 63 A current and 690 V voltage
  • Compact dimensions: 170x340.5x195 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -40 to +42
Auxiliary Contacts 1NC + 1NO
Rated Operational Current (A) 63
Rated Operational Voltage AC (V) 690
Weight (kg) 5.98
Certifications ATEX (PTB), China (NEPSI), EAC (LPE), IECEx (PTB), Korea (KGS)
Product Type Safety Switch
Brand STAHL
Series 8146/5-V37
Ambient Temperature -40 to 42 deg C
Colour Black (Handle)
Contact Configuration 1NC+1NO
Degree of Protection IP66
Depth 195 mm
Height 340.5 mm
Material Polyester resin, Glass fibre reinforced
Rated Current 63 A
Rated Voltage 690 V
Standards and Approvals ATEX (PTB), China (NEPSI), EAC (LPE), IECEx (PTB), Korea (KGS)
Width 170 mm

Description

R. STAHL's 8146/5- V37 series safety switches safely disconnect the power supply to machinery and system components for cleaning and repair as prescribed. They can be used at frequencies from 5 to 400 Hz. All of the installed load disconnect switches have an AC-3 switching capacity. The switches can be locked in the 0-position using padlocks.
