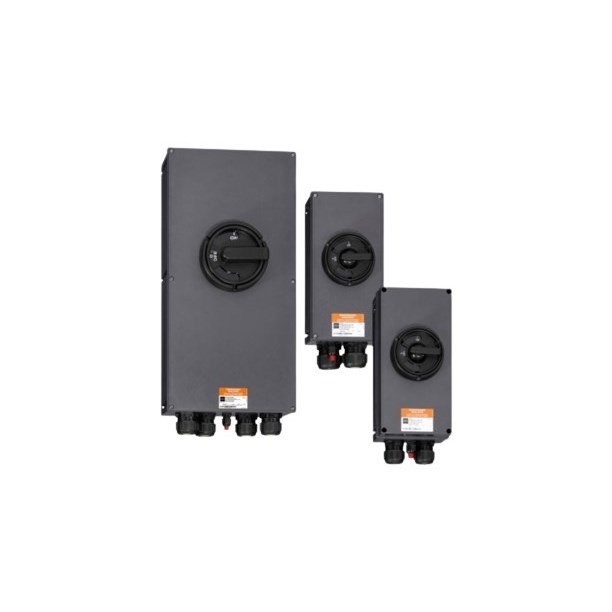

Stahl 200575 Safety Switch 690V 63/80 A IP66

Product Code: 200575

  • High protection with IP66 rating
  • Operates in -40 to 47°C environments
  • Certified by ATEX, NEPSI, EAC, IECEx, KGS
  • Rated for 63/80 A and 690 V
  • Compact design: 340.5 x 681.5 x 205 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -40 to +47
Auxiliary Contacts 1NC + 1NO
Rated Operational Current (A) 63/80
Rated Operational Voltage AC (V) 690
Weight (kg) 10.1
Certifications ATEX (PTB), China (NEPSI), EAC (LPE), IECEx (PTB), Korea (KGS)
Product Type Safety Switch
Brand STAHL
Series 8146/5-V37
Ambient Temperature -40 to 47 deg C
Colour Black (Handle)
Contact Configuration 1NC+1NO
Degree of Protection IP66
Depth 205 mm
Height 681.5 mm
Material Polyester resin, Glass fibre reinforced
Rated Current 63/80 A
Rated Voltage 690 V
Standards and Approvals ATEX (PTB), China (NEPSI), EAC (LPE), IECEx (PTB), Korea (KGS)
Width 340.5 mm

Description

R. STAHL's 8146/5- V37 series safety switches safely disconnect the power supply to machinery and system components for cleaning and repair as prescribed. They can be used at frequencies from 5 to 400 Hz. All of the installed load disconnect switches have an AC-3 switching capacity. The switches can be locked in the 0-position using padlocks.
