Specifications

Ambient Temperature Range (°C)	-20 to +60
Dimensions (mm)	103W x 12L x 72D
Maximum Current (A)	0.15
Weight (kg)	0.11
Certifications	ATEX (PTB), Brazil (ULB), Canada (CSA), EAC (STV), IECEx (PTB), Korea (KGS), USA (FM), USA (UL)
Maximum Voltage (V)	19.9
Maximum Power (mW)	746.3
Maximum Output Current (A)	0.095
No. of Channels	1

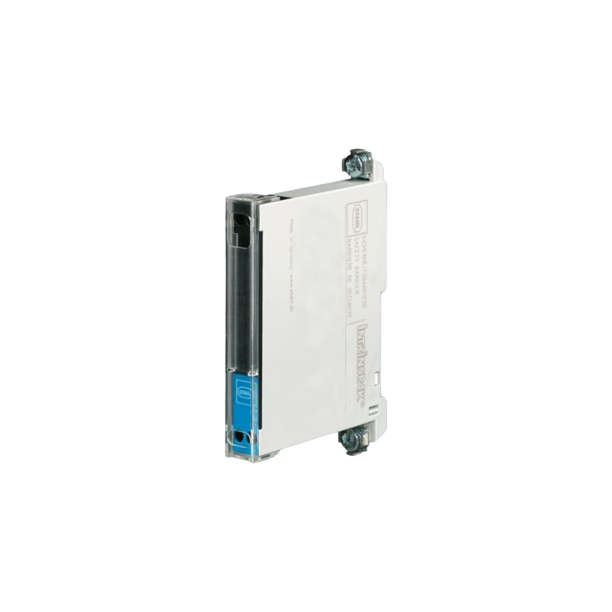

Product Type	Safety Barrier
Brand	STAHL
Ambient Temperature	-20 to 60 deg C
Cable Cross Section	1.5 sq-mm Earth, 4 sq-mm Maximum
Cable Type	Finely Stranded, Solid
Degree of Protection	IP20, IP40
Depth	72 mm
Material	Polyamide
Mounting Type	DIN Rail
Number of Channels	1
Rated Current	150 mA
Rated Power	746.3 mW
Rated Voltage	19.9 V
Standards and Approvals	ATEX (PTB), Brazil (ULB), Canada (CSA), China (NEPSI), IECEx (PTB), India (PESO), Japan (CML), Korea (KGS), USA (FM), USA (UL)
Width	103 mm
