Specifications

Ambient Temperature Range (°C)	-20 to +60
Dimensions (mm)	103W x 12L x 72D
Maximum Current (A)	0.05
Weight (kg)	0.11
No. of Channels	1
Certifications	ATEX (PTB), Brazil (ULB), Canada (CSA), EAC (STV), IECEx (PTB), Korea (KGS), USA (FM), USA (UL)
Maximum Voltage (V)	17.5
Maximum Power (mW)	219
Maximum Output Current (A)	0.028

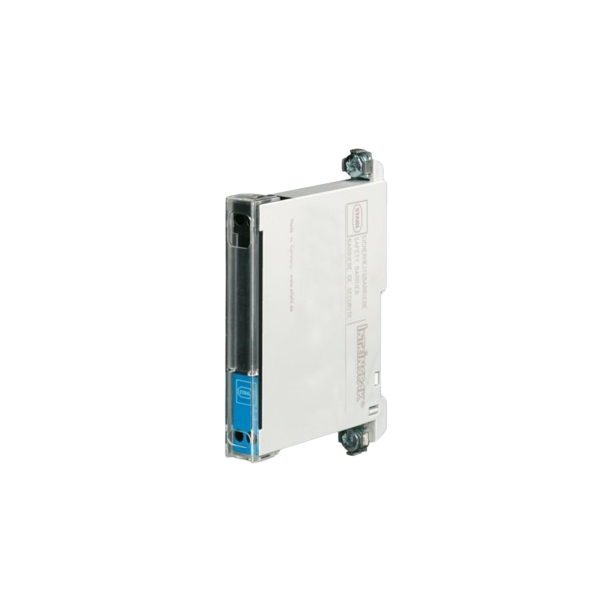

Product Type	Safety Barrier
Brand	STAHL
Ambient Temperature	-20 to 60 deg C
Cable Cross Section	1.5 sq-mm Earth, 4 sq-mm Maximum
Cable Type	Finely Stranded, Solid
Degree of Protection	IP20, IP40
Depth	72 mm
Material	Polyamide
Mounting Type	DIN Rail
Number of Channels	1
Rated Current	50 mA
Rated Power	219 mW
Rated Voltage	17.5 V
Standards and Approvals	ATEX (PTB), Brazil (ULB), Canada (CSA), China (NEPSI), IECEx (PTB), India (PESO), Japan (CML), Korea (KGS), USA (FM), USA (UL)
Width	103 mm
