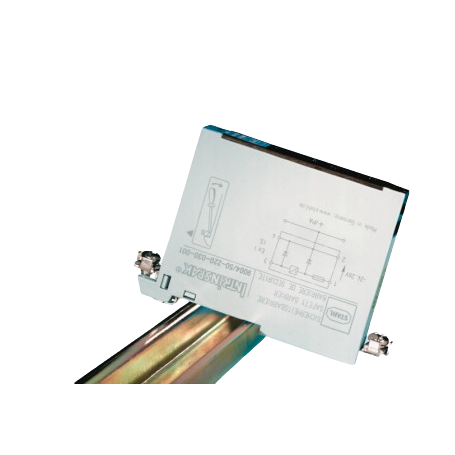

Stahl 159090 Safety Barrier 1 Ph

Product Code: 159090

  • Finely stranded, solid cable type
  • IP20/IP40 protection rating
  • Fits on DIN rail for easy mounting
  • Operates in -20 to 60°C range
  • Complies with ATEX and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

DIN Rail Width (mm) 35
Maximum Temperature (°C) 60
Minimum Temperature (°C) -20
Nominal Output Current (A) 0.04
Rated Minimum Operational Voltage DC (V) 23
Rated Maximum Operational Voltage DC (V) 27
No. of IO 1
Product Type Safety Barrier
Brand STAHL
Series 9004
Ambient Temperature -20 to 60 deg C
Cable Cross Section 1.5 sq-mm Earth, 4 sq-mm Maximum
Cable Type Finely Stranded, Solid
Degree of Protection IP20, IP40
Depth 72 mm
Material Polyamide
Mounting Type DIN Rail
Number of Channels 1
Rated Current 50 mA
Rated Power 1030 mW
Rated Voltage 20.6 V
Standards and Approvals IECEx PTB 12.0003X, PTB 02 ATEX 2008, IECEx PTB 09.0001X, PTB 01 ATEX 2088 X, Ex nA [ib Gb] IIB/IIC T4 Gc
Width 103 mm

Description

Optimize your hazardous area operations with Stahl's 9004 Series single-channel safety barriers, designed for precision and reliability. These barriers feature electronic current limiting and support a power supply range of 23 - 27 V DC, with a maximum output current of 40 mA. Engineered to perform in extreme temperatures ranging from -20°C to +60°C, they boast IP40 protection overall, with IP20 at the terminals. Ideal for Zone 2 and Division 2 installations, these devices ensure safe auxiliary power supply to field devices across various applications. Their compact design allows for easy DIN rail mounting, streamlining installation and minimizing inventory requirements through standardized back-up fuses. Trust in Stahl's expertise within the Automation Interfaces and Solutions category to safeguard your operations in challenging environments.
