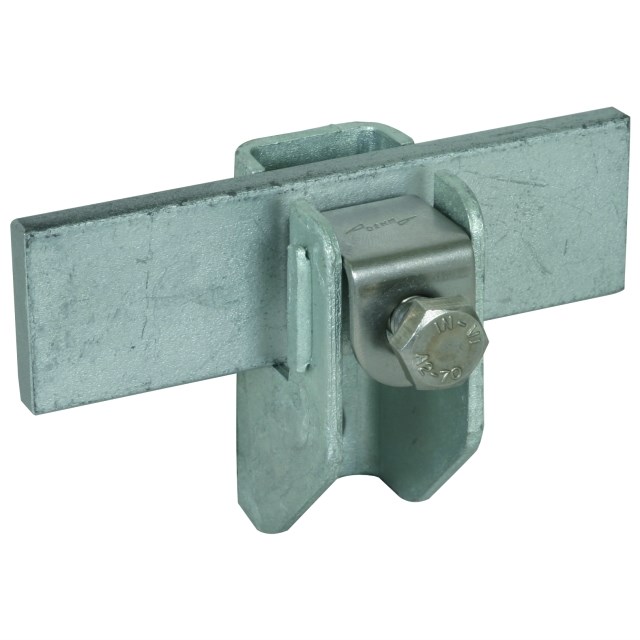

DEHN 277230 Strip Holder W/Pressure Pipe M8 x 25mm Screw 5mm W 3mm D 6mm H Steel

Product Code: 277230

  • M8 x 25 mm screw connection for secure fit
  • Complies with EN 62561-4 standards
  • Hot dip galvanized steel for durability
  • Clamping range: 6-10 mm & 1-11 mm
  • Compatible with RD 6-13/FL
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 5W x 6H x 3D
Suitable For Diameter round conductor 6mm
Weight (kg) 0.12
Wall Fixing (mm) 11
Mounting Method Bore hole
Surface Protection Hot-dip galvanized
Rod Diameter (mm) Ø6-10 / 1-11 mm
Holder Material Steel galvanised
Fixing Hole Ø (mm) Ø15 / 9 x 20 mm
Product Type Strip Holder With Pressure Pipe
Brand DEHN
Clamping Range 6-10 mm, 1-11 mm
Connection Type M8 x 25 mm Screw
Depth 3 mm
Finish Hot Dip Galvanized
Height 6 mm
Material Steel
Mounting Type With screw clamp
Standards and Approvals EN 62561-4
Suitable For Use With RD 6-13/FL
Thread Size M8 x 25mm
Weight 120 g
Width 5 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
