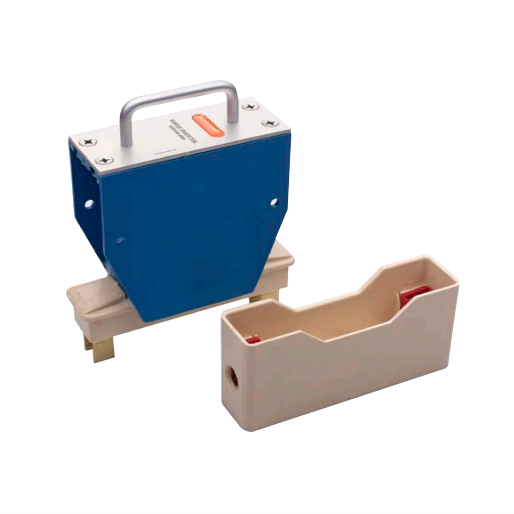

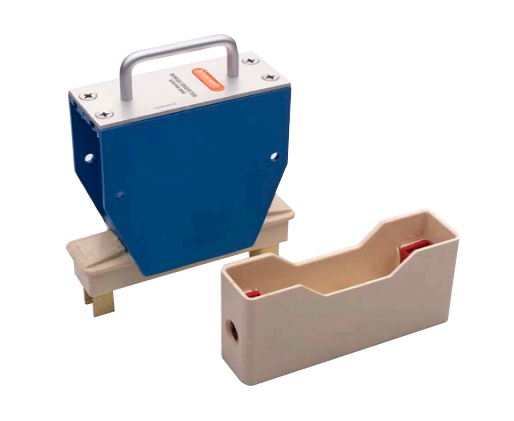

Novaris SDH-200-1000-PH High Voltage Surge Diverter 200kA 1000VAC Shunt Fuse Base Mount ABS IP20

Product Code: SDH-200-1000-PH

  • Handles up to 200 kA surge current
  • Rated for 1000 VAC applications
  • Fast response time of <5 ns
  • Complies with IEC, AS/NZS, IEEE standards
  • Operates in -40 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 57W x 214H x 162D
Maximum Continuous Voltage AC (V) 1000
Maximum Discharge Current (8/20µs) (kA) 200
Product Type High Voltage Surge Diverter
Brand NOVARIS
Colour Blue
Connection Type Shunt
Degree of Protection IP20
Depth 162 mm
Height 214 mm
Humidity 5-95%
Material ABS, Ceramic
Modes of Protection L-PE
Mounting Type Fuse Base
Operational Temperature -40 to 70 deg C
Rated Current 200 kA
Rated Voltage 1000 VAC
Response Time <5 ns
Standards and Approvals IEC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C
Tightening Torque 2.5 N-m
Voltage Protection Level 2.6 kV
Weight 2 kg
Width 57 mm
