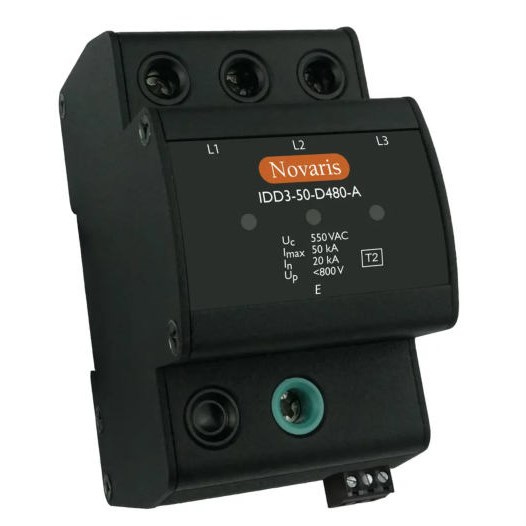

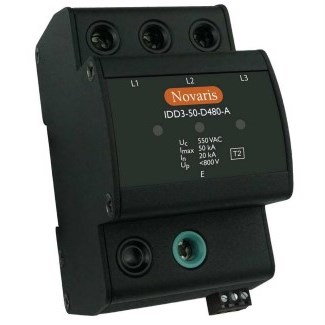

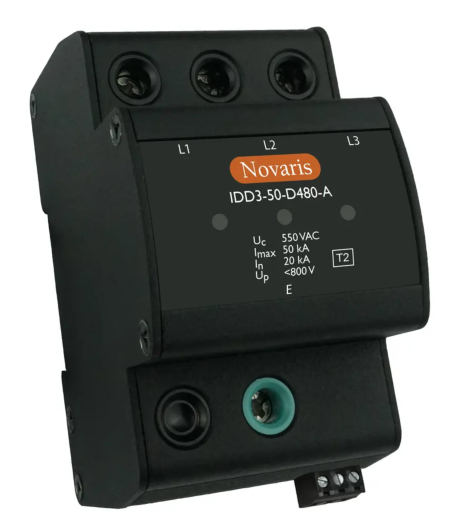

Novaris IDD3-50-D480-A Surge Protection 6.25kA 3 PH 50kA 400VAC TS35 IP20

Product Code: IDD3-50-D480-A

  • 400 VAC, 50 kA surge protection for 3-phase systems
  • LED display shows power and thermal failure status
  • Easy TS35 DIN Rail mounting system
  • Durable aluminium with IP20 protection rating
  • Fast response time of <5 ns (L-PE)
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Lightning Impulse Current (10/350 &#181;s) - Iimp (kA) 6.25 (L-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 480 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V) 670 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA) 50 (L-PE)
No. of Poles 3P+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-PE)
Nominal Voltage AC (V) 400
Dimensions (mm) 54W x 70H x 95L
Voltage Protection Level - Up (kV) <1.5 (L-PE)
Weight (g) 400
Product Type Surge Protection
Brand NOVARIS
Series IDD3
Connection Type Shunt
Degree of Protection IP20
Depth 95 mm
Display Type LED Power and Thermal Failure
Fuse Rating 32 A
Height 70 mm
Humidity 5-95%
Lightning Impulse Current 6.25 kA (L-PE)
Material Aluminium
Modes of Protection L-L, L-PE
Mounting Type TS35 DIN Rail
Number of Ports 1
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 50 kA (L-PE)
Rated Short Circuit Current 25 kA
Rated Voltage 400 VAC
Response Time <5 ns (L-PE)
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition
Tightening Torque 2 N-m
Voltage Protection Level <800 V
Weight 400 g
Width 54 mm

Description

The Novaris IDD3-50-D480-A is a high-performance surge diverter specifically designed for delta connected systems. It offers comprehensive protection by covering all combinations of lines and features thermal sensing to warn against sustained overvoltages without disconnecting the protection. The device includes an active LED display for phase status and operation monitoring, housed in a safe metal enclosure to prevent fire or explosion risks.
