Specifications

Nominal Discharge Current (8/20µs) - In (kA)	150
No. of Phases	3
Operational Temperature Range (°C)	-40 to 70
Enclosure Material	Aluminium
Maximum Continuous Voltage AC (V)	275

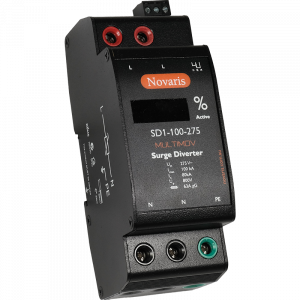

Product Type	Surge Diverter
Brand	NOVARIS
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	200 mm
Display Type	Digital
Fuse Rating	80 A
Height	80 mm
Humidity	5-95%
Interrupt Rating	100 A
Lightning Impulse Current	19 kA (L-N), 30 kA (N-PE)
Material	Metal
Modes of Protection	L-L, L-N, N-PE
Mounting Type	Panel
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	150 kA (L-N), 150 kA (N-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Response Time	<25 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<750V (L-N)
Weight	2.7 kg
Width	200 mm
