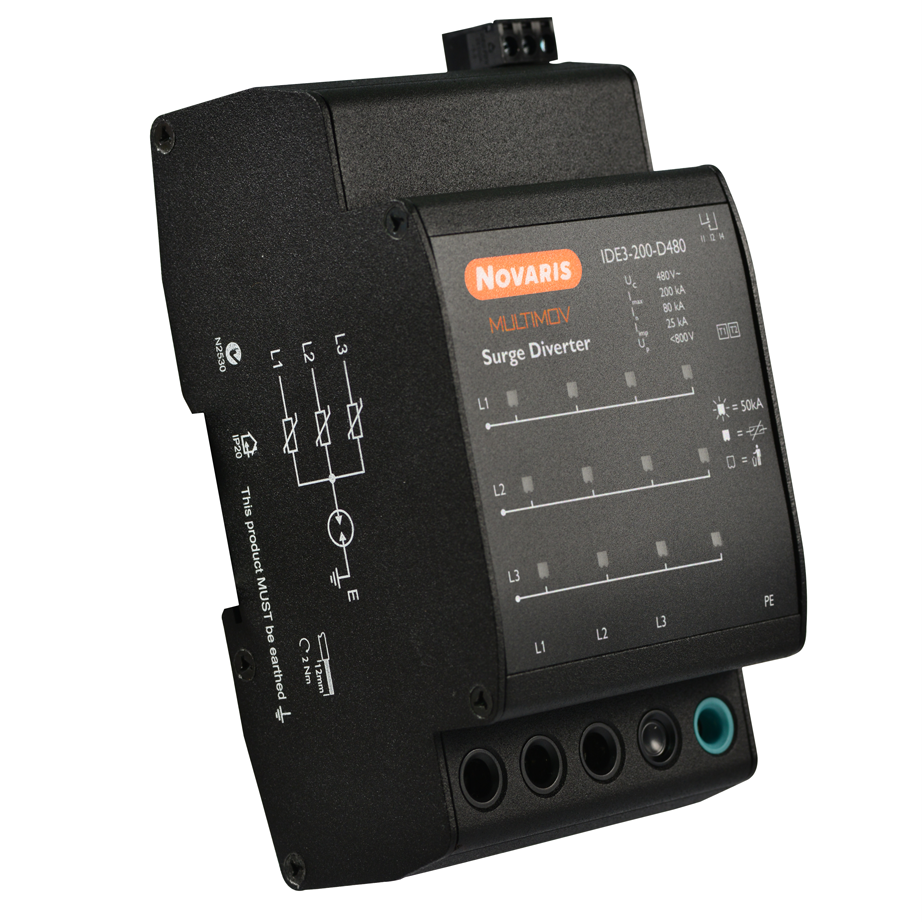

Novaris IDE3-200-D480 Surge Diverter 25kA 3 PH 200kA 400VAC TS35 IP20

Product Code: IDE3-200-D480

  • 3-phase surge protection up to 200 kA
  • LED display for power and thermal failure alerts
  • Compact size: 80x69x141 mm, fits TS35 DIN Rail
  • Complies with IEC 61643-11:2011 standards
  • Fast response time of <5 ns (L-PE)
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Lightning Impulse Current (10/350 &#181;s) - Iimp (kA) 25 (L-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 480 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V) 670 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA) 200 (L-PE)
No. of Poles 3P+PE
Nominal Discharge Current (8/20µs) - In (kA) 80 (L-PE)
Nominal Voltage AC (V) 400
Voltage Protection Level - Up (kV) <1.5 (L-PE)
Product Type Surge Diverter
Brand NOVARIS
Series IDE
Connection Type Shunt
Contact Configuration SPDT
Degree of Protection IP20
Depth 141 mm
Display Type LED Power and Thermal Failure
Fuse Rating 100 A
Height 69 mm
Humidity 5-95%
Lightning Impulse Current 25 kA (L-PE)
Material Aluminium
Modes of Protection L-L, L-PE
Mounting Type TS35 DIN Rail
Number of Ports 1
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 200 kA (L-PE)
Rated Short Circuit Current 50 kA
Rated Voltage 400 VAC
Response Time <5 ns (L-PE)
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007
Tightening Torque 0.5 N-m, 2 N-m
Voltage Protection Level <800 V
Weight 960 g
Width 80 mm

Description

Delta Connected Surge Diverter 3P+PE, Nominal voltage 400VAC. Maximum continuous voltage 480VAC &amp; 670VDC. Maximum discharge current (8/20 µs) 200kA (L-PE), Lightning impulse current (10/350 µs) 25kA (L-PE). Nominal discharge current (8/20 µs) 80kA (L-PE). Voltage protection level (In) &lt;1500V (L-PE). The design utilizes metal oxide varistors (MOVs) between phases and a hybrid MOV + gas discharge tube (GDT) between phase and earth. Designed for protecting delta-connected systems and is ideal for installing in main switchboards.
