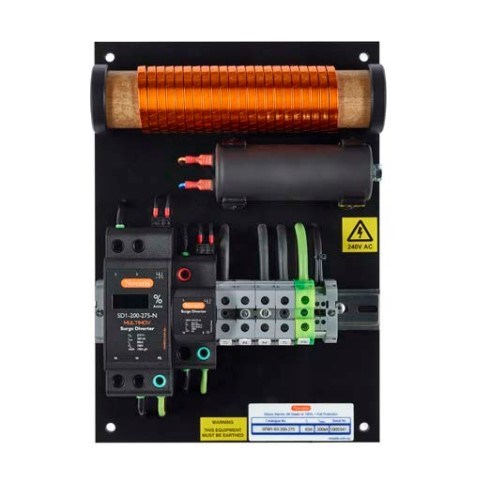

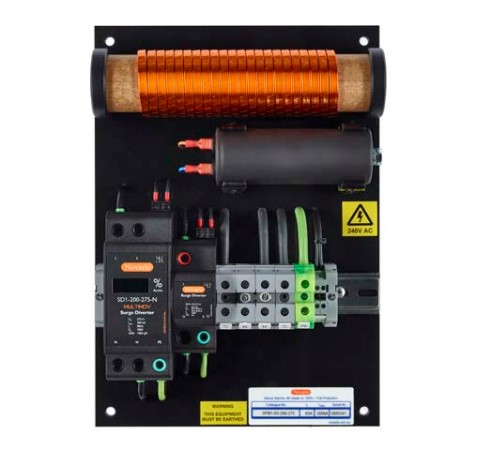

Novaris SFM1-125-200-275 Surge Filter 25kA 1 PH 200kA 230VAC Panel Mounting IP20

Product Code: SFM1-125-200-275

  • Surge filter for 230 VAC systems
  • High surge current capacity of 200 kA
  • LED display for power and thermal failure
  • Complies with IEC and AS/NZS standards
  • Compact panel mount design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 344H x 284W x 110D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 200
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 80
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.36 (L-N)
Maximum Load Current - I? (A) 125
Weight (kg) 15
Product Type Surge Filter
Brand NOVARIS
Series SFM1
Connection Type Series
Degree of Protection IP20
Depth 110 mm
Display Type LED Power and Thermal Failure
Fuse Rating 125 A
Height 344 mm
Humidity 5-95%
Lightning Impulse Current 25 kA (L-N)
Modes of Protection L-N, L-PE, N-PE
Mounting Type Panel
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 200 kA (L-N)
Rated Short Circuit Current 50 kA
Rated Voltage 230 VAC
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007
Tightening Torque 0.5 N-m, 1 N-m
Voltage Protection Level <3.6 kA (L-N)
Weight 12 kg
Width 284 mm

Description

The Novaris SFM1-125-200-275 Medium Current Filters provide comprehensive surge protection by combining two stages of varistor protection with a low pass LC filter. Designed for installation at main switchboards, this device ensures the safety of all connected downstream equipment against high frequency noise and transients. The product features an active display for monitoring segment status and thermal overload, as well as fail-safe alarm contacts for remote monitoring.
