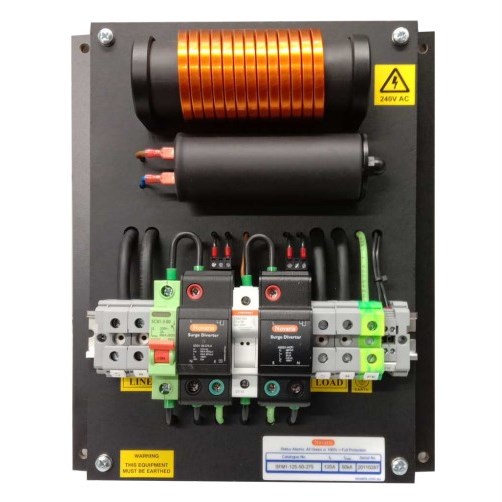

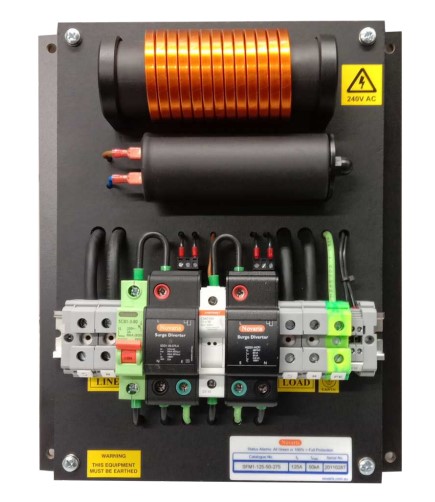

Novaris SFM1-125-50-275 3-Stage Surge Filter 6.25kA 1 PH 50kA 230VAC Panel Mount IP20

Product Code: SFM1-125-50-275

  • Surge Filter with 230 VAC rating
  • LED display for power and thermal status
  • IP20 protection, panel mounting
  • Operates in -40 to 70°C range
  • Complies with IEC 61643-11:2011, AS/NZS 1768:2007
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 344H x 284W x 110D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 6.25
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 50
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 20
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.36 (L-N)
Maximum Load Current - I? (A) 125
Weight (kg) 15
Product Type 3-Stage Surge Filter
Brand NOVARIS
Series SFM1
Connection Type Series
Degree of Protection IP20
Depth 110 mm
Display Type LED Power and Thermal Failure
Fuse Rating 125 A
Height 344 mm
Humidity 5-95%
Lightning Impulse Current 6.25 kA (L-N)
Modes of Protection L-N, L-PE, N-PE
Mounting Type Panel
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 50 kA (L-N)
Rated Short Circuit Current 50 kA
Rated Voltage 230 VAC
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007
Tightening Torque 0.5 N-m, 1 N-m
Voltage Protection Level <3.6 kA (L-N)
Weight 11 kg
Width 284 mm

Description

The Novaris SFM1-125-50-275 offers a three-stage surge protection system designed to safeguard sensitive electrical equipment. It features two stages of varistor protection and a low pass LC filter, ensuring the highest level of defense against high frequency noise and transients. An active digital display provides real-time status monitoring while fail-safe alarm contacts enable remote supervision.
