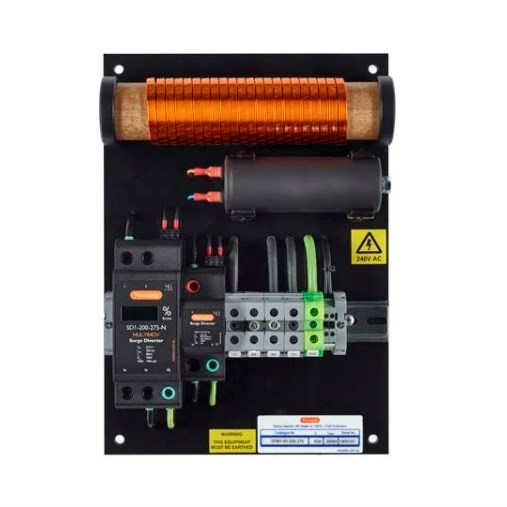

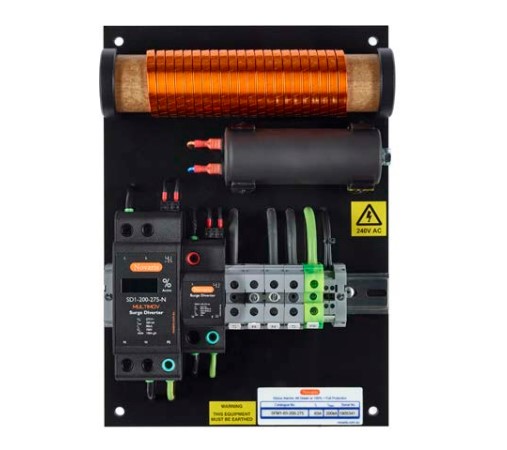

Novaris SFM1-63-200-275 Surge Filter 1 PH 63A 230VAC Panel Mount IP20

Product Code: SFM1-63-200-275

  • 230 VAC, 63 A single-phase surge filter
  • LED display for power and thermal alerts
  • Protects L-N, L-PE, N-PE modes
  • Complies with IEC 61643-11:2011 standards
  • Rated short circuit current of 50 kA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 344H x 284W x 110D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 200
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 80
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Weight (kg) 15
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.36 (L-N)
Maximum Load Current - I? (A) 63
Product Type Surge Filter
Brand NOVARIS
Series SFM1
Connection Type Series
Degree of Protection IP20
Depth 106 mm
Display Type LED Power and Thermal Failure
Fuse Rating 63 A
Height 344 mm
Humidity 5-95%
Modes of Protection L-N, L-PE, N-PE
Mounting Type Panel
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 63 A
Rated Short Circuit Current 50 kA
Rated Voltage 230 VAC
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007
Voltage Protection Level <360 V
Weight 11 kg
Width 282 mm

Description

The Novaris SFM1-63-200-275 Medium Current Filters provide three stages of protection with two stages of varistor protection and a low pass LC filter to safeguard sensitive loads from high frequency noise and transients. It offers all-mode protection for lines including L-L, L-N, L-E, N-E configurations.
