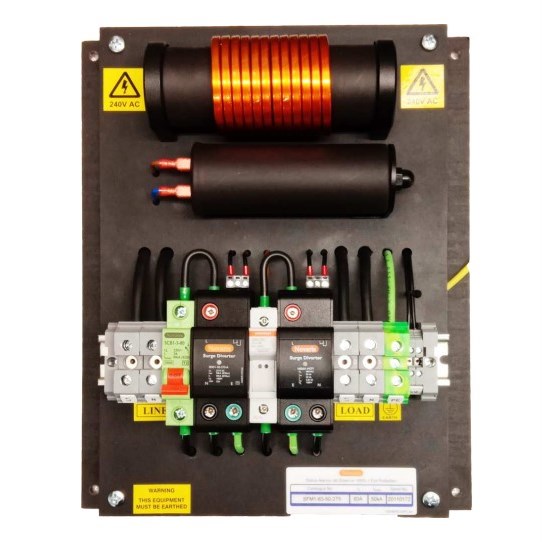

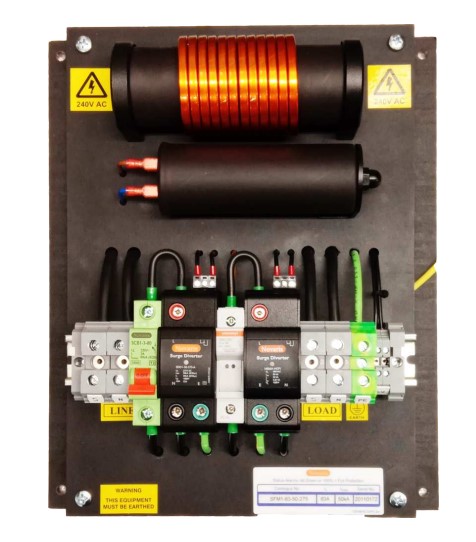

Novaris SFM1-63-50-275 3-Stage Surge Filter 6.25kA 1 PH 63A 230VAC Panel Mounting IP20

Product Code: SFM1-63-50-275

  • Surge filter with 230 VAC, 63 A rating
  • LED display for power and thermal failure
  • Protects against L-N, L-PE, N-PE modes
  • Lightning impulse current of 6.25 kA
  • Compliant with IEC and AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 344H x 284W x 110D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 6.25
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 50
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 20
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.36 (L-N)
Maximum Load Current - I? (A) 63
Weight (kg) 15
Product Type 3-Stage Surge Filter
Brand NOVARIS
Series SFM1
Connection Type Series
Degree of Protection IP20
Depth 106 mm
Display Type LED Power and Thermal Failure
Fuse Rating 63 A
Height 344 mm
Humidity 5-95%
Lightning Impulse Current 6.25 kA
Modes of Protection L-N, L-PE, N-PE
Mounting Type Panel
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 63 A
Rated Short Circuit Current 50 kA
Rated Voltage 230 VAC
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007
Voltage Protection Level <360 V
Weight 9 kg
Width 282 mm

Description

The Novaris SFM1-63-50-275 Medium Current Filters provide comprehensive surge protection with three stages including varistor and low pass LC filter, ensuring all-mode line protection and featuring a digital active display for monitoring.
