Specifications

Dimensions (mm)	3W x 8H x 3D
Weight (kg)	0.138
Clamping Range (mm)	8 - 10
Surface Protection	Hot-dip galvanized
Conductor Diameter (mm)	8
Lightning current load-bearing capacity (10/350µs)	100/50

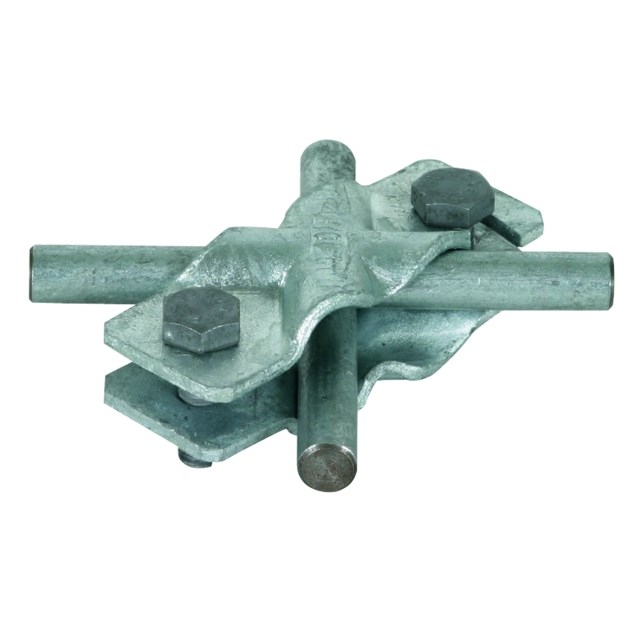

Product Type	SVP Clamp
Brand	DEHN
Clamping Range	8-10 mm
Connection Type	M8 x 25 mm Screw
Connector Type	Cross connector
Depth	3 mm
Finish	Hot Dip Galvanized
Height	8 mm
Lid Screw Type	Hexagon screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Steel
Standards and Approvals	EN 62561-1
Thread Size	M8 x 25mm
Weight	138 g
Width	3 mm
