Specifications

Ambient Temperature Range (°C)	-10 to 55
Minimum Switching Time (s)	60
Rated Frequency (Hz)	50/60
Rated Voltage AC (V)	230 ± 15%
No. of Modules - Width 17.5 mm	2
Power Consumption (VA)	6
Storage Temperature Range (°C)	-20 to 60
Resistive Loads	16
Inductive Loads (CosF 0.6)	10
Maximum Operations per Cycle	56
Time Accuracy	± 1.5s/24h

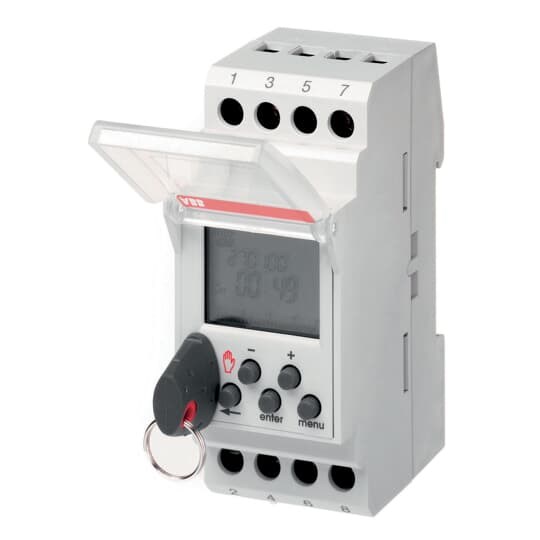

Product Type	Astronomical Twilight Switch
Brand	ABB
Contact Configuration	1NO+1NC
Degree of Protection	IP20
Mounting Type	DIN Rail
Operating Time	60 s
Operational Temperature	-10 to 55 deg C
Rated Power	6 VA
Rated Voltage	230 VAC
Standards and Approvals	IEC 60 634-1, NFC 15 100
