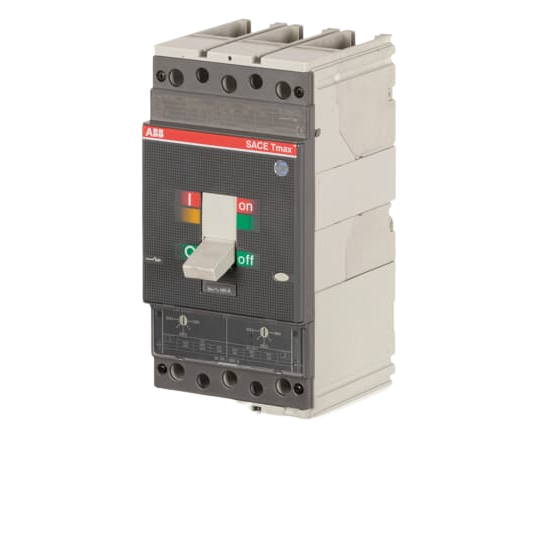

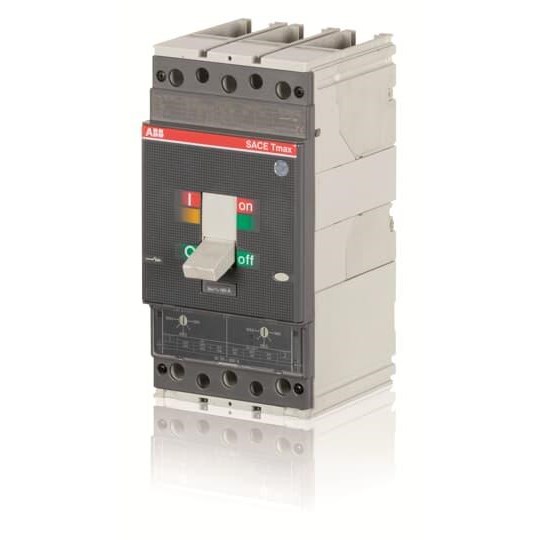

ABB 1SDA064206R1 Moulded Case Circuit Breaker 1150/1000VAC/VDC 50A 3-P 20kA TMD Front For: T4

Product Code: 1SDA064206R1

  • Rated current of 50 A for reliable performance
  • Insulation voltage up to 1150 V
  • Trip unit type TMD ensures safety
  • Breaking capacity of 20 kA
  • Compact width of 105 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 240
Length (mm) 290
Suitable For T4
Width (mm) 230
EAN 8015644670801
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 20 kA
Connection Type Front
Number of Poles 3
Power Loss 3.9 W
Rated Current 50 A
Rated Insulation Voltage 1150 V
Rated Voltage 1150/1000 VAC/VDC
Release Type TM
Standards and Approvals IEC 309
Suitable For Use With T4
Trip Unit TMD
Weight 2.35 kg
Width 105 mm

Description

circuit breaker TMAX T4V 250 1150V AC fixed three-pole with front terminals and thermomagnetic release TMD R 50-500 A
