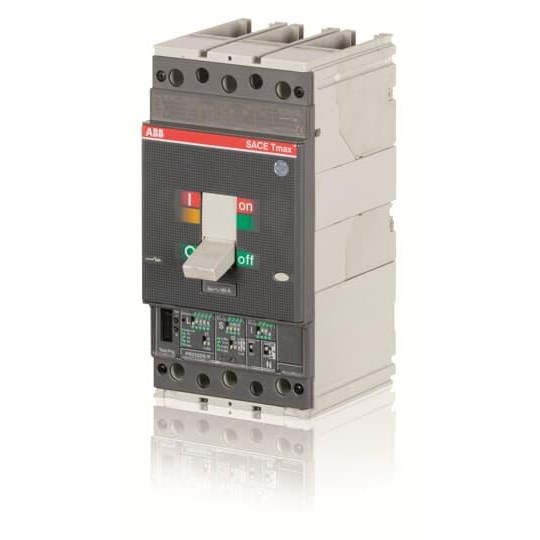

ABB 1SDA054520R1 Moulded Case Circuit Breaker 1150VAC 250A 3-P 20kA Front For: T4

Product Code: 1SDA054520R1

  • Rated current of 250 A
  • Withstands impulse up to 8 kV
  • Insulation voltage rated at 1150 V
  • Breaking capacity of 20 kA
  • Compact width of 105 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 240
Length (mm) 290
Suitable For T4
Weight (kg) 3.5
Width (mm) 250
EAN 8015644556228
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 20 kA
Connection Type Front
Number of Poles 3
Power Loss 10.7 W
Rated Current 250 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1150 V
Rated Voltage 1150 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With T4
Weight 3.5 kg
Width 105 mm

Description

circuit breaker TMAX T4V 250 1150V AC fixed three-pole with front terminals for cable Cu and solid-state release in AC PR222DS/P-LSIG R 250
