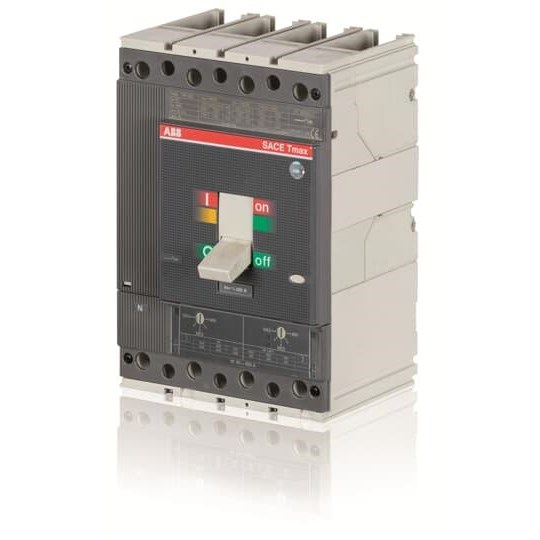

The T4 Frame is a robust and reliable solution designed for industrial and commercial applications, offering essential features tailored to meet specific technical requirements. With a rated current of 100 A, it ensures efficient power distribution across various setups. The product is engineered with a rated impulse withstand voltage of 8 kV, providing resilience against transient overvoltages typically encountered in electrical systems.
One of the standout specifications is its high-rated insulation voltage of 1150 V, making it suitable for both AC and DC applications up to 1150/1000 VAC/VDC. This flexibility allows integration into diverse electrical environments without compromising performance or safety.
The T4 Frame features a TM release type with a TMA trip unit, enhancing protection by ensuring precise tripping under fault conditions. Its breaking capacity stands at an impressive 20 kA, capable of handling significant fault currents effectively. Additionally, the power loss is minimized to just 5.2 W, optimizing energy efficiency within your system.
Designed with practicality in mind, this product includes four poles and offers front connection type for straightforward installation and maintenance access. The compact width of 140 mm aids in accommodating space-constrained installations while maintaining functionality.
Compliant with IEC 309 standards and approvals, the T4 Frame meets international quality benchmarks ensuring reliability and safety in operation. Weighing only 3.05 kg, it balances sturdiness with ease of handling during setup.
This product seamlessly integrates into systems compatible with the T4 series providing users confidence in compatibility and performance consistency across their infrastructure needs.
