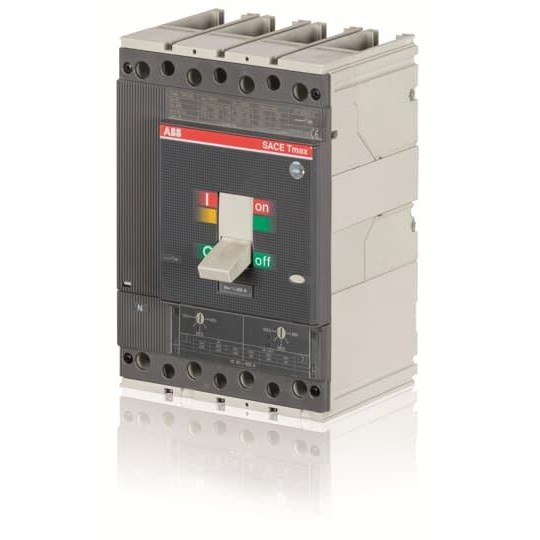

ABB 1SDA054501R1 Moulded Case Circuit Breaker 1150/1000VAC/VDC 125A 4-P 20kA TMA Front For: T4

Product Code: 1SDA054501R1

  • Supports up to 125 A current
  • Withstands impulse voltage of 8 kV
  • Insulation voltage rated at 1150 V
  • Features a TMA trip unit for reliability
  • Compliant with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 240
Length (mm) 290
Suitable For T4
Weight (kg) 3.5
Width (mm) 250
EAN 8015644556037
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 20 kA
Connection Type Front
Number of Poles 4
Power Loss 6.2 W
Rated Current 125 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1150 V
Rated Voltage 1150/1000 VAC/VDC
Release Type TM
Standards and Approvals IEC 309
Suitable For Use With T4
Trip Unit TMA
Weight 3.05 kg
Width 140 mm

Description

circuit breaker TMAX T4V 250 1150V AC-1000V DC fixed four-pole with front terminals for cable Cu and thermomagnetic release TMA R 125-1250 A fully rated neutral.
