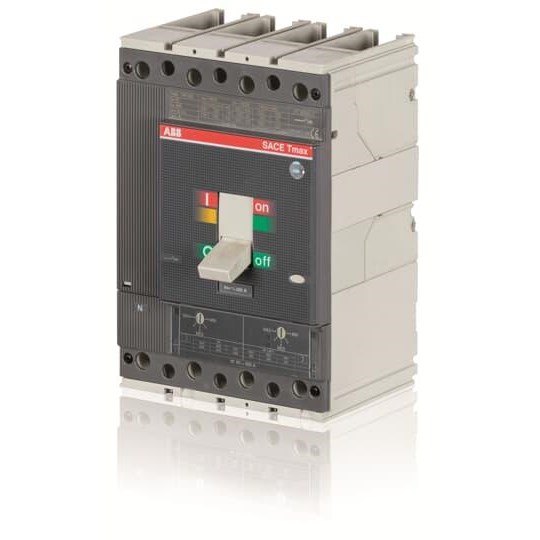

ABB 1SDA054504R1 Moulded Case Circuit Breaker 1150/1000VAC/VDC 250A 4-P 20kA TMA Front For: T4

Product Code: 1SDA054504R1

  • Rated current of 250 A
  • Withstands impulse voltage up to 8 kV
  • Insulation voltage rated at 1000 V
  • Breaking capacity of 20 kA
  • Compact width of 140 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 240
Length (mm) 290
Suitable For T4
Weight (kg) 3.5
Width (mm) 250
EAN 8015644556068
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 20 kA
Connection Type Front
Number of Poles 4
Power Loss 13.7 W
Rated Current 250 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 1150/1000 VAC/VDC
Release Type TM
Standards and Approvals IEC 309
Suitable For Use With T4
Trip Unit TMA
Weight 3.05 kg
Width 140 mm

Description

circuit breaker TMAX T4V 250 1150V AC-1000V DC fixed four-pole with front terminals for cable cu and thermomagnetic release TMA R 250-2500 A fully rated neutral.
