Specifications

Diameter (mm)	15
Dimensions (mm)	40W x 600H x 40D
Suitable For	Air Termination Rods
Weight (kg)	310
Accessory Type	Lightning Protection
Surface Protection	Hot-dip galvanized
Mount Flange	4x Ø27 mm for 4x M24 (300 x 300 mm)
Height Above Ground Level (mm)	19380
Mast Segments	3
Max. Gust Wind Speed with Bucket Foundation (km/h)	107
Flange Plate Dimensions (mm)	400 x 400
Length of Air-Termination Rod (mm)	5380
Dimensions On-Site Concrete Foundation (mm)	1600 x 1600 x 900

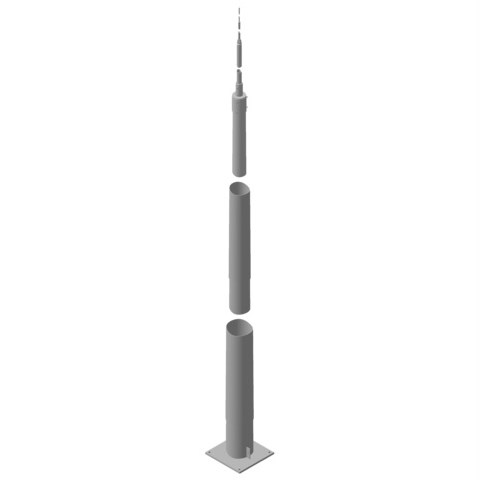

Product Type	Telescopic Lightning Protection Mast With Flange
Brand	DEHN
Connection Type	Round Conductor
Depth	40 mm
Finish	Hot Dip Galvanized
Height	600 mm
Material	Steel
Model	Interception rod
Size	15 mm
Standards and Approvals	DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Suitable For Use With	Air Termination Rods
Weight	310 kg
Width	40 mm
