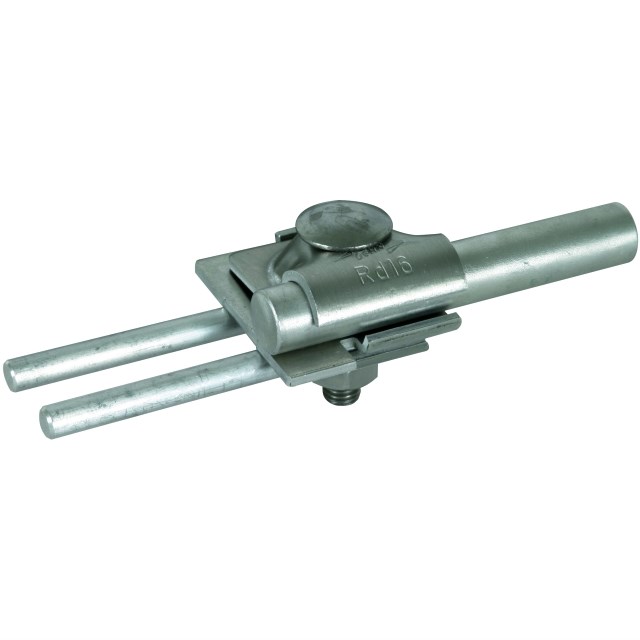

DEHN 380116 Air-Termination Rod Clamp M10 x 45mm Screw 16mm Aluminium

Product Code: 380116

  • M10 x 45 mm screw connection
  • Aluminium material for durability
  • Handles lightning current up to 100 kA
  • Clamping range of 8-10 mm
  • Meets EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 6W x 6H x 5D
Thickness (mm) 3
Suitable For Earthing
Weight (kg) 0.1
Class (Lightning Current Carrying Capability) (kA) 100
Type Equipotential Bonding
Clamping Range (mm) 2 x 8 - 10
Surface Protection Untreated
Conductor Diameter (mm) 16
Product Type Air-Termination Rod Clamp
Brand DEHN
Clamping Range 8-10 mm
Conductor Size 16 mm
Connection Type M10 x 45 mm Screw
Connector Type Parallel connector
Depth 5 mm
Finish Untreated
Height 6 mm
Lid Screw Type Other
Lightning Current Carrying Capability 100 kA
Material Aluminium
Screw Size M10 x 45
Standards and Approvals EN 62561-1
Thickness 3 mm
Weight 100 g
Width 6 mm
